The OPG that fits
any practice.
Ultra-compact. Sharp. Simple. Upgradeable.

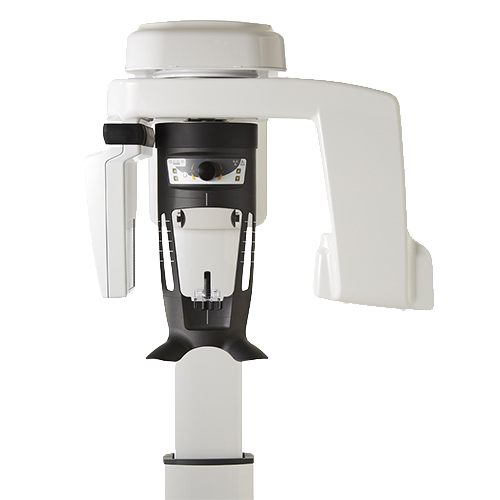

The Carestream CS 8100 Evo Edition is one of the world’s most popular panoramic X-ray units — and it’s easy to see why. Tomosharp technology delivers sharp images every time, laser-free face-to-face positioning makes setup effortless, and its ultra-compact 33 cm footprint fits into rooms where other units simply won’t go. Upgradeable to ceph or full 3D CBCT whenever you’re ready.
design awards
position
scan time
installation
The simplicity you need.
The image quality you demand.
The CS 8100 Evo Edition packs professional panoramic imaging into one of the most compact, easy-to-use units on the market. Each card shows the feature, what advantage it gives you clinically, and the benefit to your practice.
Tomosharp Technology
AdvantageProprietary algorithms recognise where the anatomy is sharpest and automatically reconstruct the best possible image — even when the patient is not perfectly aligned.
BenefitFewer retakes, more consistent diagnostic quality. Your team spends less time repositioning patients and more time treating them.
Laser-free Face-to-face Positioning
AdvantageA thicker focal trough means positioning is forgiving and fast — no lasers, no mirrors. Face-to-face contact lets you watch and communicate with the patient throughout.
BenefitFaster patient throughput, better compliance from anxious patients, and improved positioning accuracy for the whole team.
Ultra-compact 33 cm Footprint
AdvantageAt just 33 cm wide in resting position, the CS 8100 is one of the most compact OPG units available. It fits into tight spaces without structural modifications.
BenefitBring panoramic imaging in-house without expensive room alterations. Ideal for practices where space is genuinely limited.
CS Adapt Image Processing
AdvantageFour processing modes (Original, T-Mat, Sharp, Smooth) plus anatomic Endo and Perio filters give you precise control over how images look on screen.
BenefitEvery clinician gets images optimised for their diagnostic purpose without needing post-processing software or additional steps.
Upgradeable to Ceph or 3D CBCT
AdvantageAdd the CS 8100SC cephalometric arm at any time. Or upgrade to full 3D CBCT via a software key — FOVs from 4×4 cm up to 8×9 cm.
BenefitBuy the panoramic you need today. Add ceph or 3D as your caseload grows — without replacing the whole unit.
CS Imaging Version 8 Software
AdvantageOne platform for all your 2D, 3D, intraoral and CAD/CAM imaging data. Integrates with all major practice management and imaging software.
BenefitOne-stop access to every patient image in your practice. No switching between programmes, no data silos.
Perfect for
everyday needs.
The CS 8100 covers the full range of routine panoramic programmes your practice needs — all selectable with a single preset, no complex configuration required.
Watch before
you decide.
See the CS 8100 Evo Edition in action — Tomosharp technology, laser-free positioning, image quality and everyday clinical workflow.
Full spec.
No surprises.
Published Carestream specifications for the CS 8100 Evo Edition. Call us for the full technical sheet and PC hardware requirements.
| Specification | CS 8100 Evo Edition |
|---|---|
| Guide price | From £9,870 + VAT (excl. PC, critical exam & installation) — 🏆 Price match guaranteed. We won’t be beaten. |
| Tube voltage | 60–90 kV |
| Tube current | 2–15 mA |
| Frequency | 140 kHz |
| Focal spot | 0.5 mm (IEC 60336) |
| Sensor technology | CMOS |
| Scan time (panoramic) | 10 seconds |
| Exposure time | 2–12.5 seconds |
| Total filtration | > 2.5 mm eq. Al |
| Input voltage | 100–240 V, 50/60 Hz |
| Width (resting position) | 33 cm |
| Dimensions (without ceph) | 330 (L) × 936 (D) × 1,596 (H) mm |
| Minimum room size (without ceph) | 1,200 (L) × 1,400 (D) × 2,400 (H) mm |
| Weight (without ceph) | 72 kg |
| Height adjustment | Motorised — 1,062 mm to 1,712 mm |
| Jaw morphology presets | 3 (normal, square, sharp) |
| Patient sizes | 4 (child, adult small, medium, large) |
| Software | CS Imaging Suite Version 8 |
| Upgradeable to ceph | Yes — CS 8100SC module (add at any time) |
| Upgradeable to 3D CBCT | Yes — CS 8100 3D via software key (4×4 cm to 8×9 cm FOV) |
Add cephalometric imaging
whenever you’re ready.

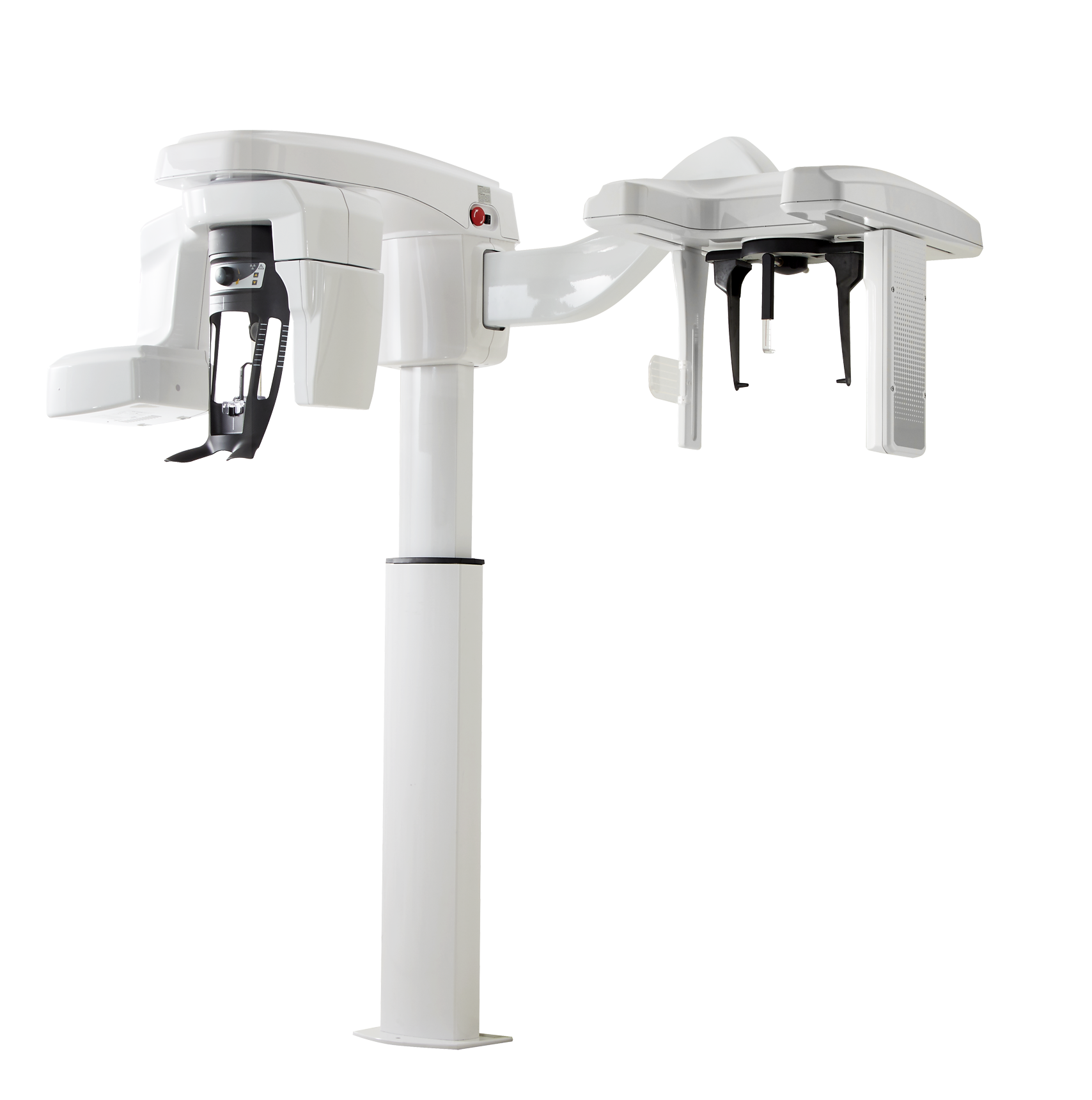

The CS 8100SC cephalometric arm attaches cleanly to the CS 8100, turning your OPG into a combined panoramic and ceph unit. It’s one of the smallest ceph attachments on the market — and one of the fastest, with a 3-second scan time and automatic landmark tracing completed in just 10 seconds.
Order it with the unit or retrofit at any time. Add it when orthodontics or surgical planning demands it — not before.
Anyone can sell you an OPG.
We go further.
When you buy from 360 Visualise, you get more than the machine. You get a team that’s with you from the first conversation to long after your first patient scan.
Everything covered.
From day one.
Got questions?
We’ve got answers.
Ready to bring professional panoramic
imaging in-house?
Call us, request a quote, or visit our Ilkley imaging centre to see Carestream equipment running live. Honest advice, no pressure — from a team that uses this technology every day.
