Carestream Dental — Imaging Plate System

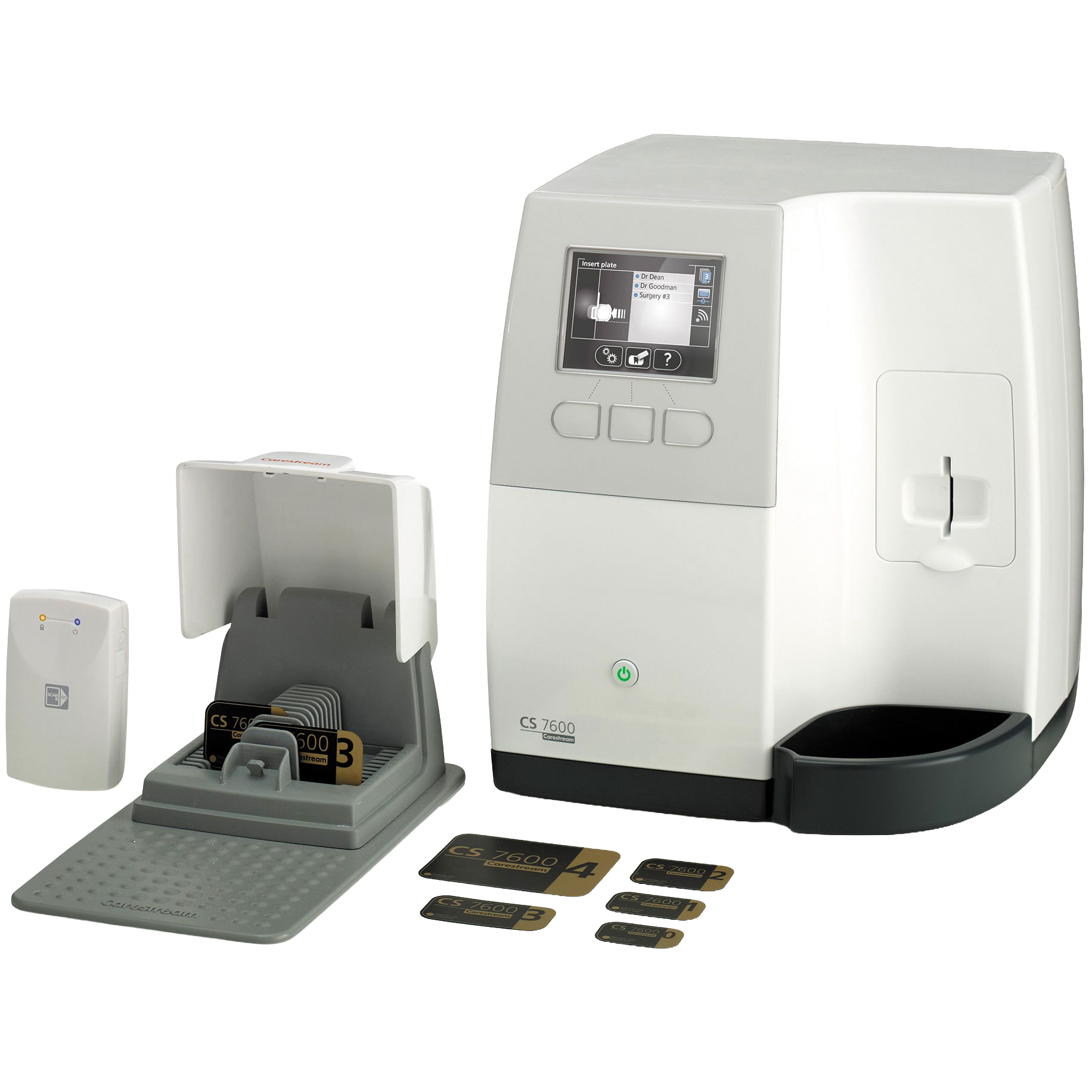

Carestream CS 7600
Digital imaging.
Film familiarity.
The CS 7600 gives multi-surgery practices the freedom to share one unit across every operatory. First image in 5 seconds. Automated patient routing. No workflow disruption.
Scan & Go technology
Multi-surgery use
17 lp/mm resolution
5 plate sizes (0–4)
✓ Includes free sheaths worth £98 + VAT | ✓ Remote installation included | ✓ Price excludes VAT
Best price guarantee
Full installation included
WhatsApp support
Finance available
RDN-delivered training
Spread the cost from approx. £149/month + VAT
Finance available via Bramar, Performance Finance and Aspired Finance. Subject to status.
Get a finance quote

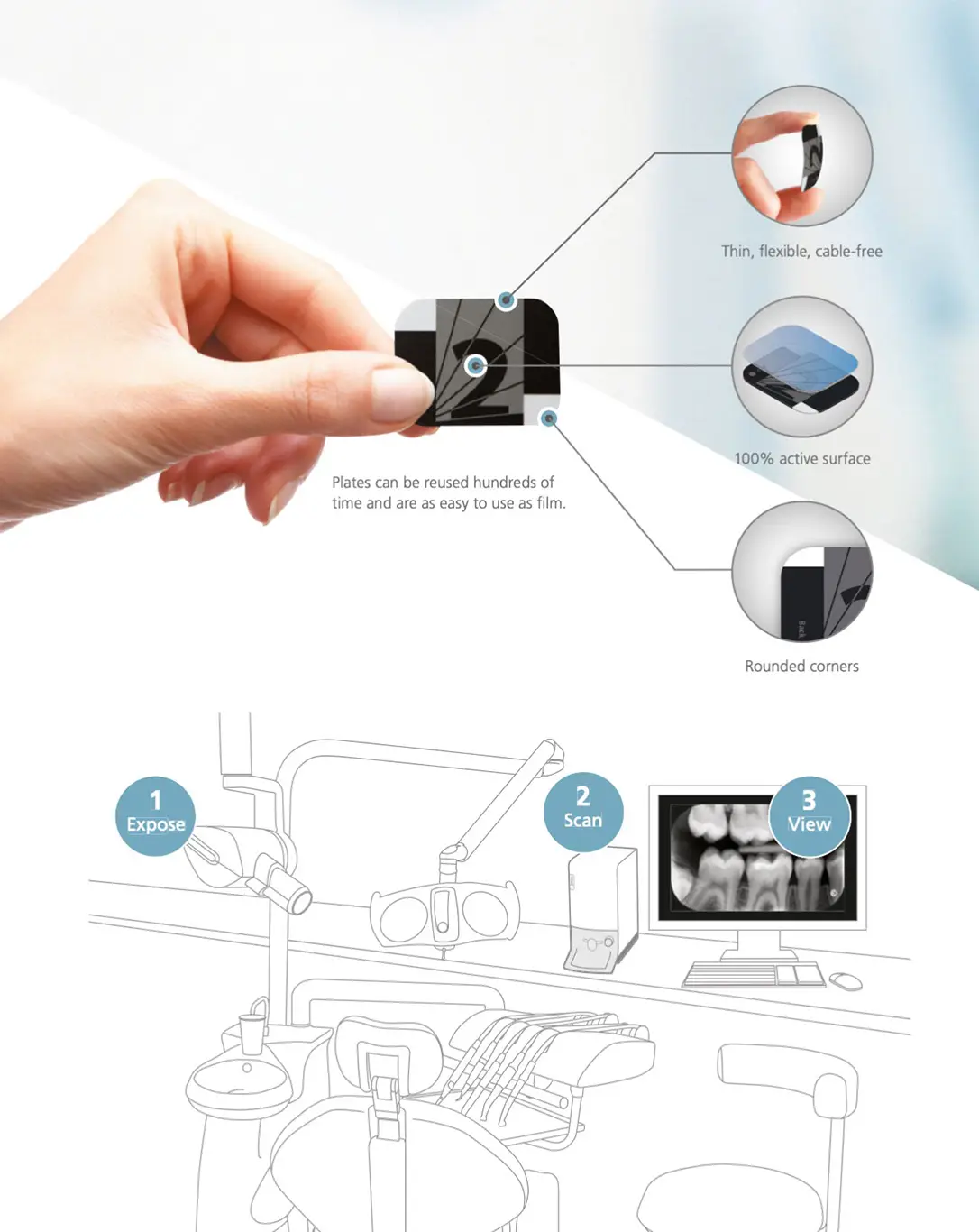

How it works
1
Identify
Smart Plate pre-registers patient, dentist & operatory data via built-in chip
2
Expose
Take X-ray as normal — thin, flexible, cable-free plates. Easy to position
3
Scan
First image in 5 seconds. Three modes: super high res, high res, high speed
4

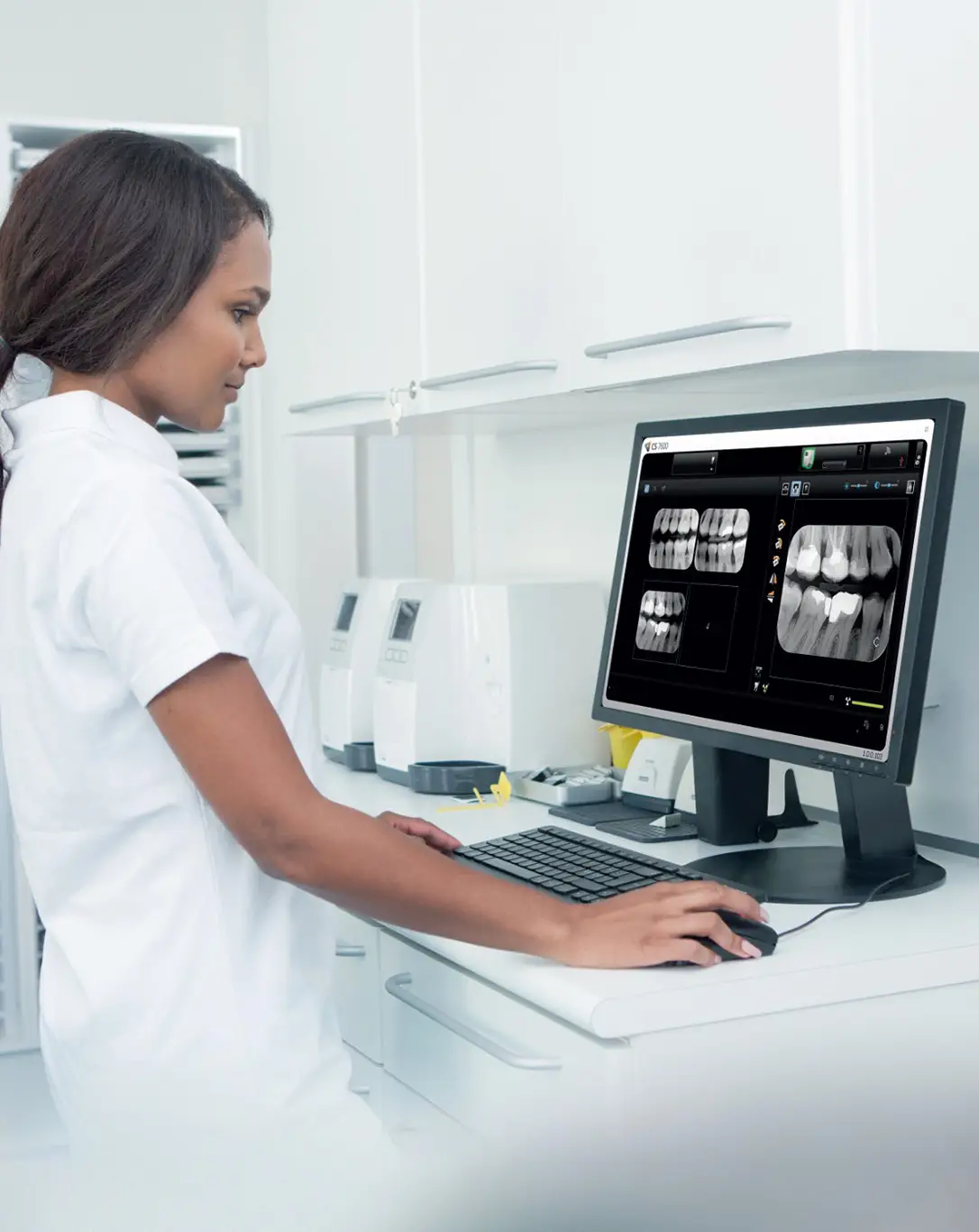

View
Images auto-routed to the correct computer & patient file. No manual sorting
Key features
Scan & Go technology
Plates pre-identified electronically. Images route to the right patient file automatically — no manual sorting, no mix-ups between patients or surgeries.
17 lp/mm true resolution
Three scanning modes — super high resolution, high resolution and high speed. CS Adapt preprogrammed filters enhance images in one click.

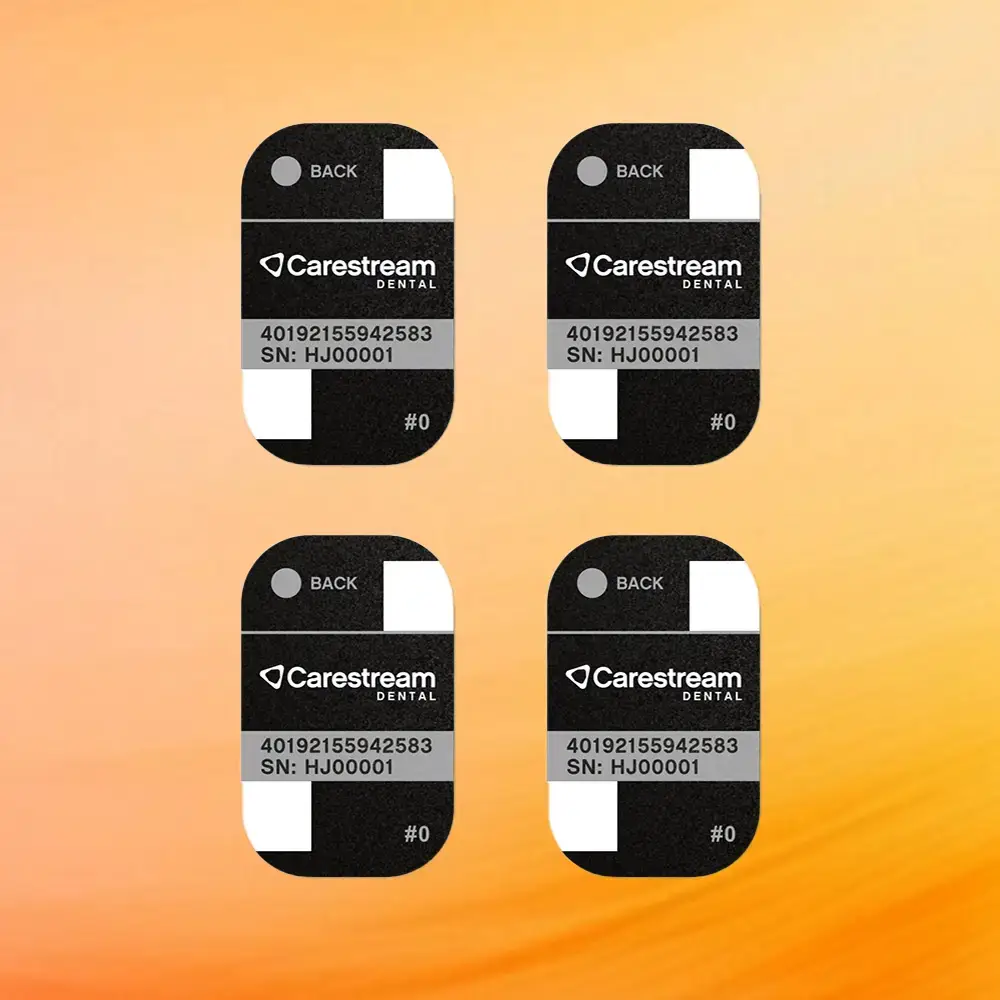

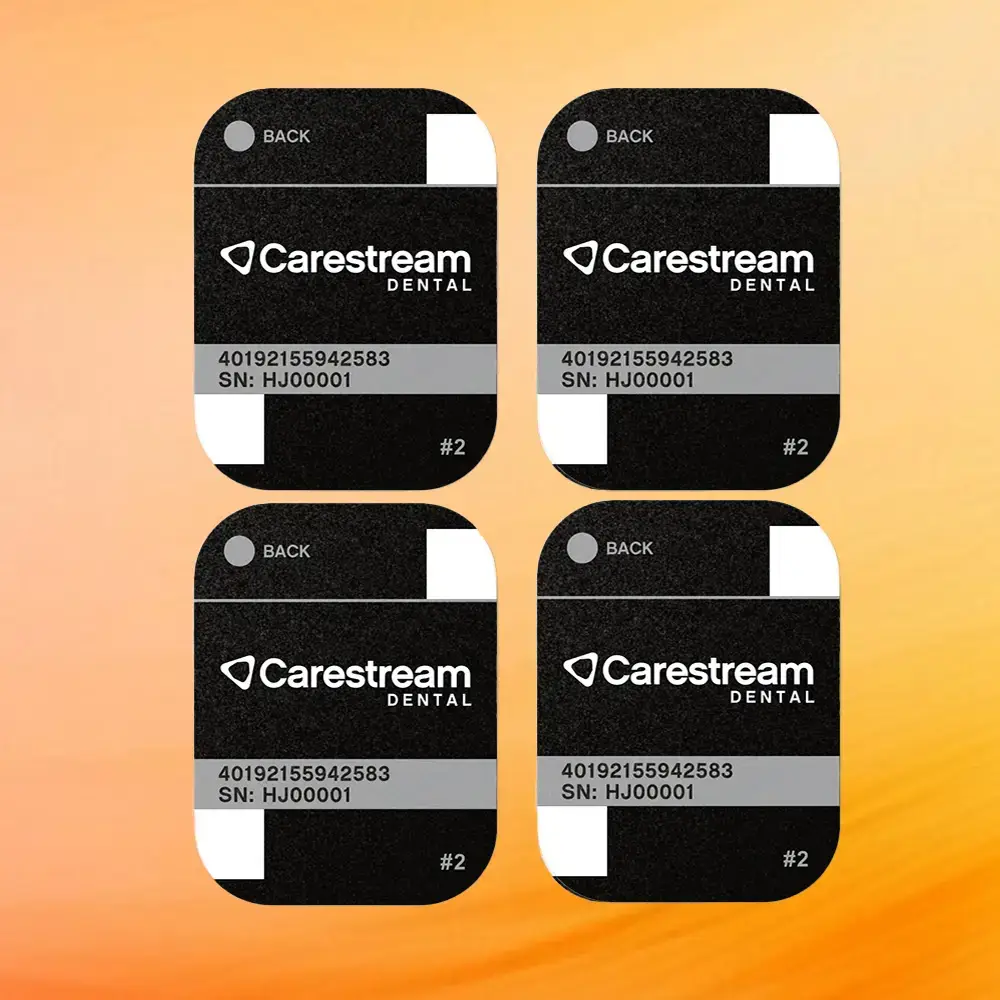

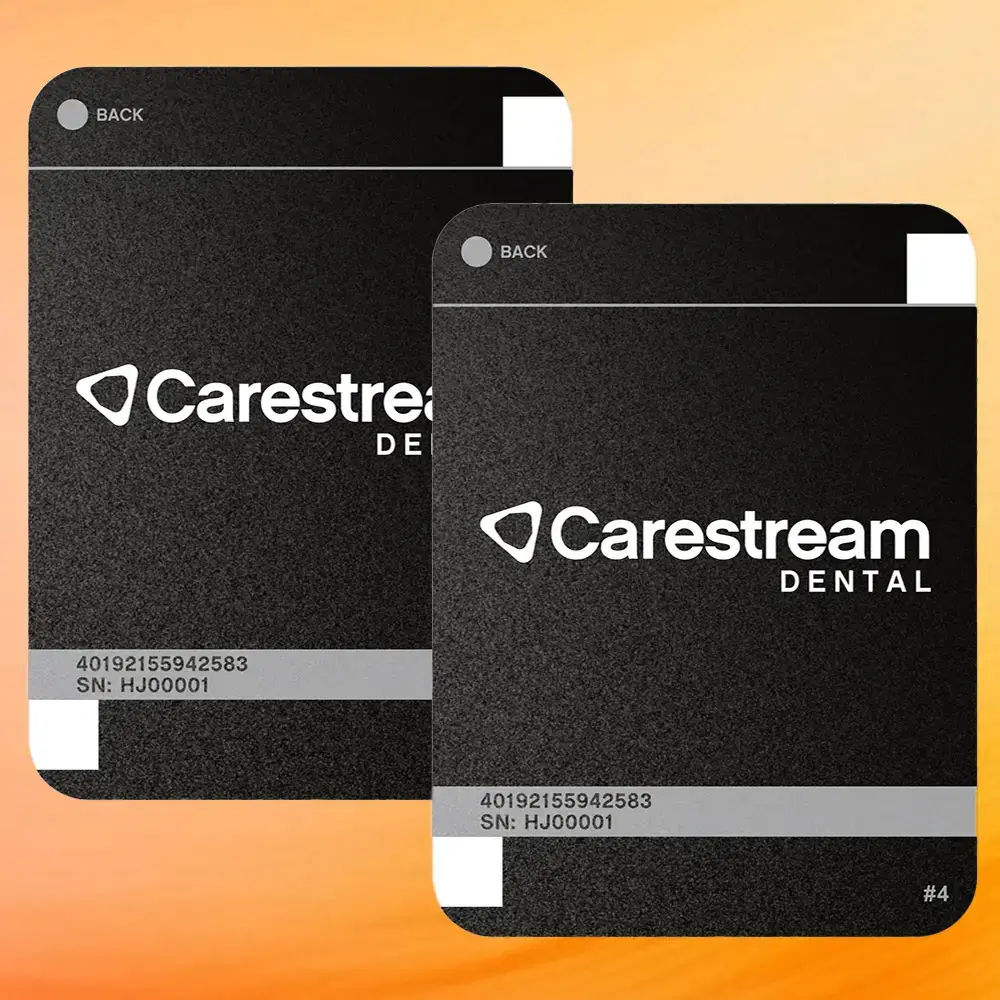

All 5 plate sizes (0–4)
Including size 3 long bitewing and size 4 true occlusal — not available on the CS 7200. Covers paediatric through to full adult FMS.

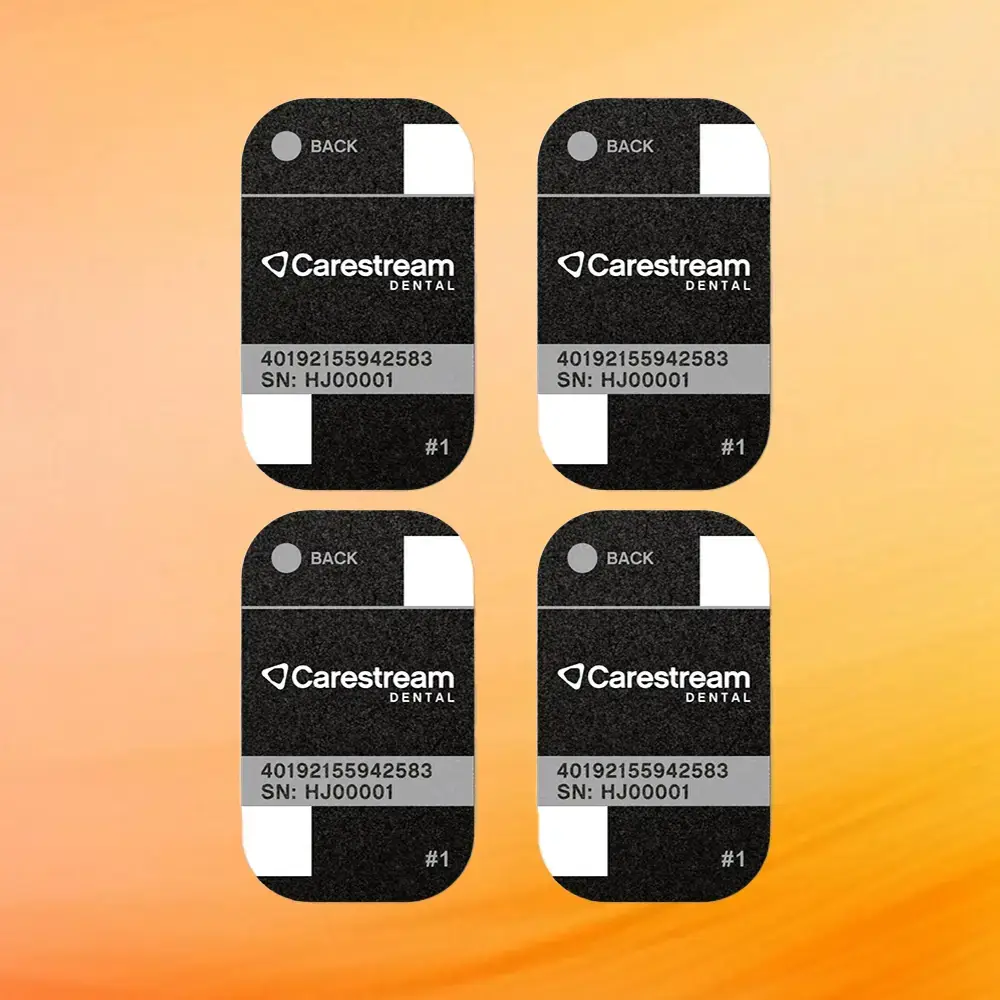

Smart Plate scan counter
Each plate tracks its own scan count automatically. System alerts you at 500 cycles when replacement is needed. No guesswork, no wasted plates.
Network ready
Up to 10 workstations per scanner. Multiple units on one network. Switch between workstations in 2 clicks from the acquisition software.
Compact — fits anywhere
Small footprint — desktop or wall mounted. Works in normal light. Can be used chairside or centralised between operatories without an additional computer.
Why the CS 7600 stands apart
The PSP system that works as hard as your busiest surgery
-
No blocking. No waiting. No mix-ups.The CS 7600 is available to any user at any time. Scan mixed patient plates in any order — the system handles routing automatically.
-
Zero image mix-ups — everSmart Plates carry patient data on a built-in chip. Images route automatically to the correct patient file. No manual sorting, no human error.
-
5 seconds to first imageFastest in its class. Expose, scan, view — your whole team keeps moving without interruption between patients.
-
17 lp/mm — diagnostic-grade clarityTrue 17 lp/mm resolution with CS Adapt intelligent processing. Confidence-inspiring images that support accurate diagnosis every time.
-
Familiar as film — zero retrainingThin, flexible, cable-free plates feel exactly like film. Your team is up and running from day one. No lengthy learning curve.
Technical specifications
Max true resolution17 lp/mm
Time to first image5 seconds
Plate sizes supported0, 1, 2, 3, 4
Scanning modes3 (Super HR / HR / High Speed)
ConnectivityUSB + network (RJ45)
Plate durability500 scan cycles
Required softwareCSD imaging v1.18.0+
Max workstations10 per unit
Warranty1 yr standard / 2 yr registered
Price (ex-VAT)£4,999.99
Why buy from 360 Visualise
Best price guarantee
We'll match any genuine like-for-like quote. No quibble.
Remote installation included
We configure the software, network settings and CS Adapt — you just plug it in.
Dedicated WhatsApp support
Real people, fast responses. Not a ticket queue.
RDN-delivered clinical training
Full team training from a registered dental nurse — included.
Flexible finance
Bramar, Performance Finance and Aspired Finance. Spread the cost over 12–60 months.
Yorkshire-based team
You'll always speak to the same person. No call centres.
Consumables & accessories — add to your order
Need something else?
Contact our team →
Contact our team →

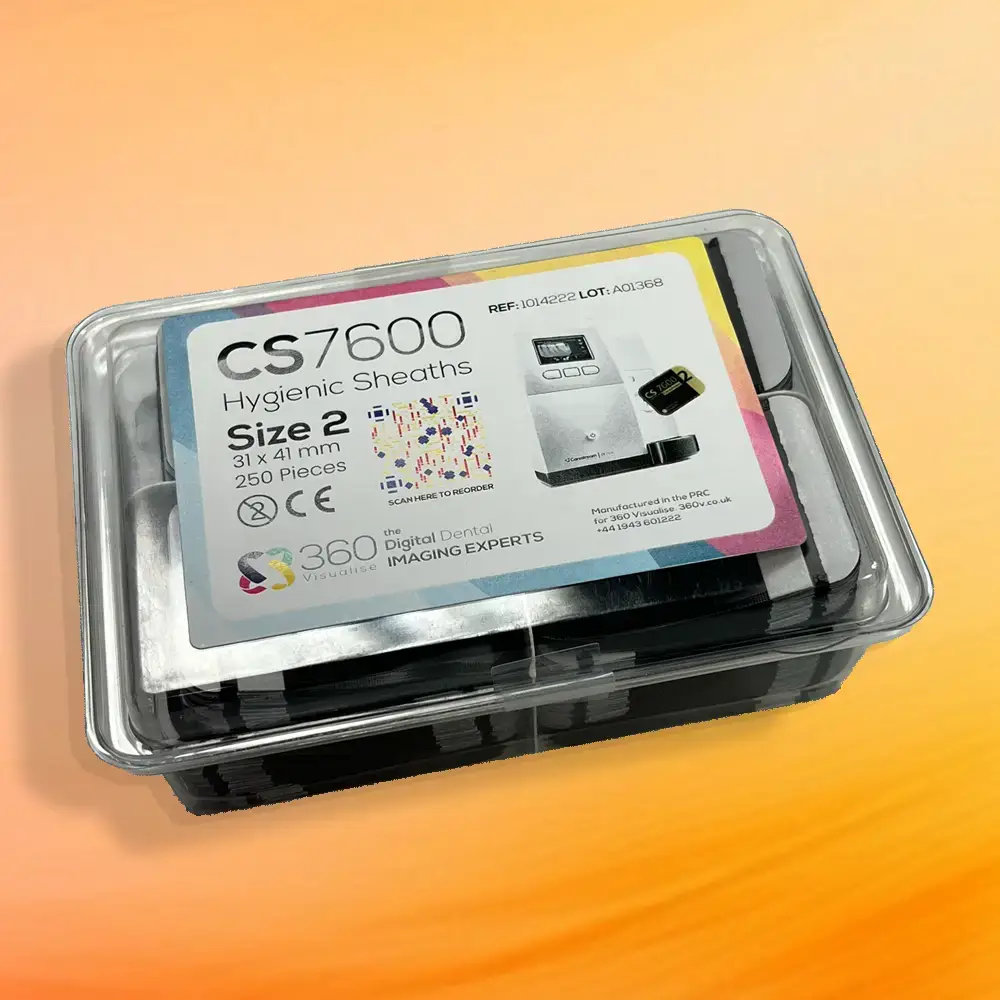

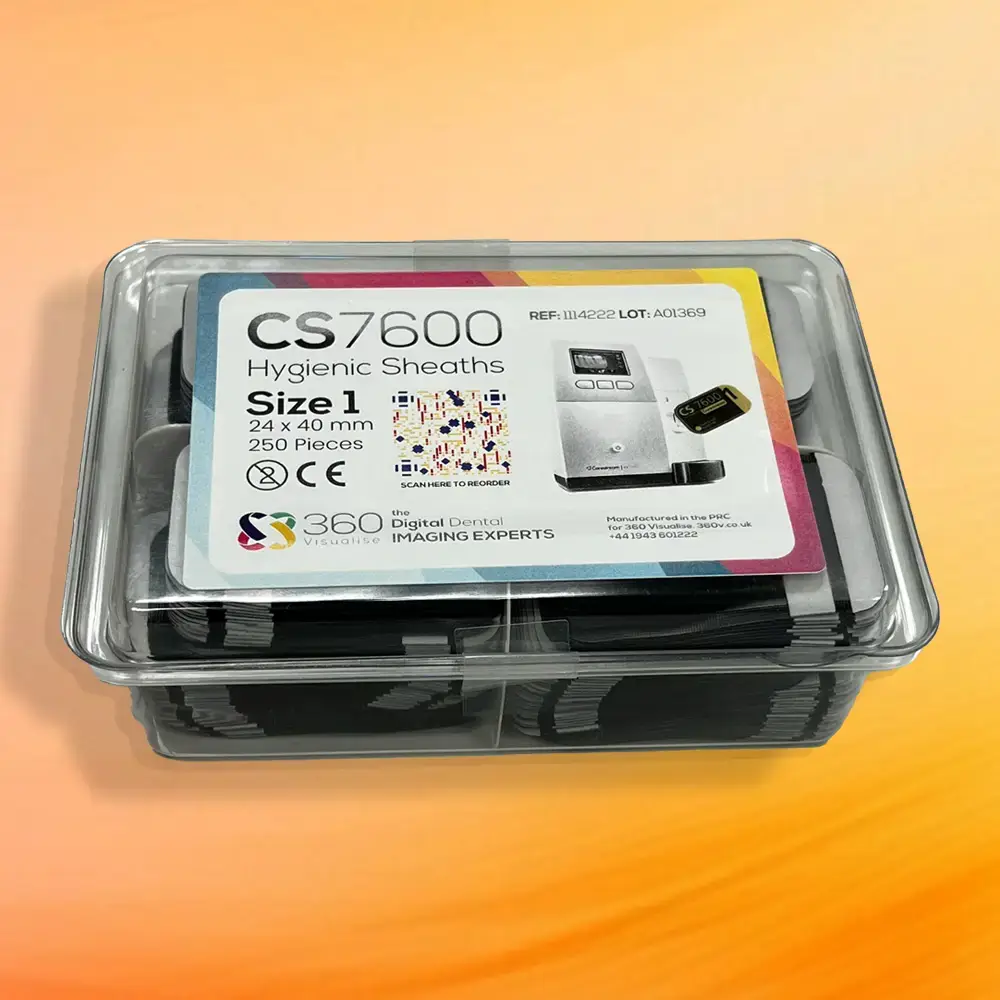

Why our sheaths are the only safe choice for the CS 7600

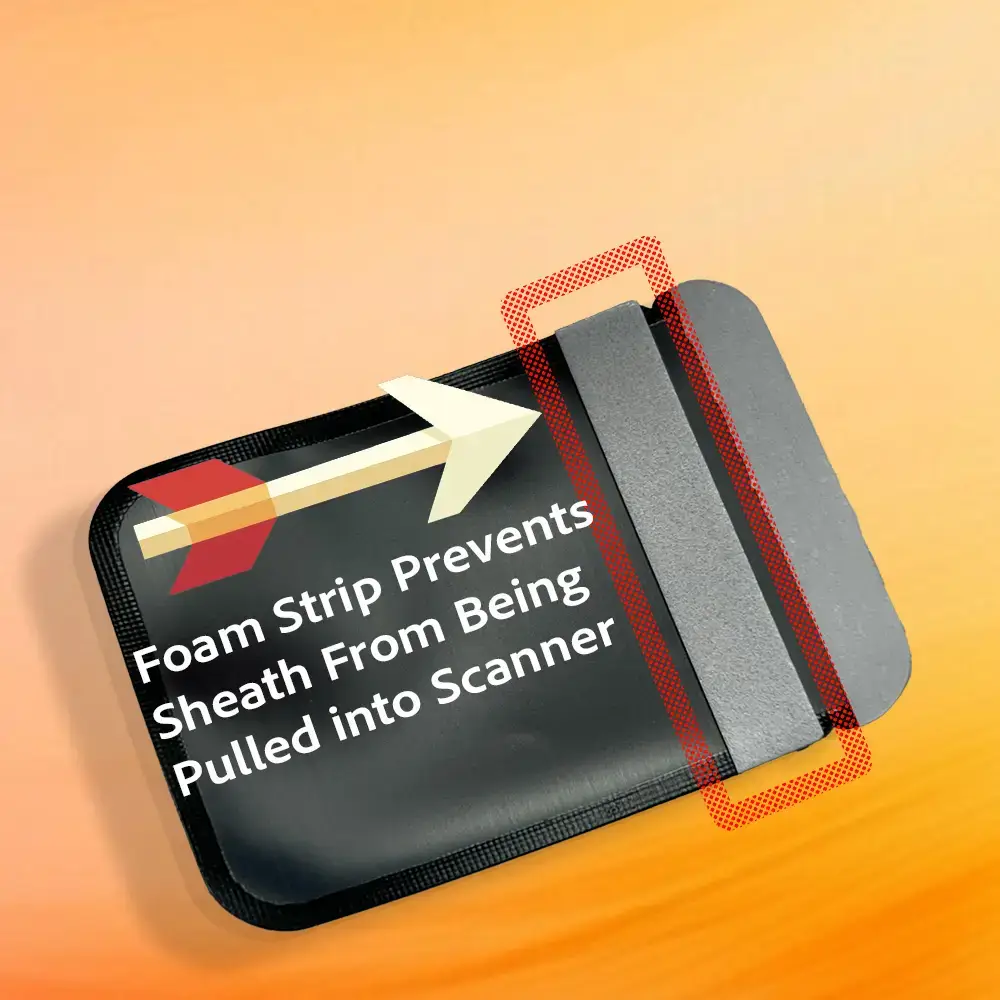

Our hygienic sheaths are manufactured to Carestream's own specification — with a foam strip that prevents the sheath being drawn into the scanner during plate insertion. Non-manufacturer sheaths lack this strip. In our experience this causes internal damage to the scanning mechanism and will invalidate your warranty. 250 sheaths for just £49 + VAT. Don't risk it.
[Eighteeth Nanopix image]
Worth considering before you decide
Is a direct sensor right for your practice?
The CS 7600 is the ideal choice for multi-surgery sharing — it does that job brilliantly. But if instant images and no scanning step matter to you, direct sensors are now genuinely affordable. The Eighteeth Nanopix gives your practice two direct sensors for just over £2,000 + VAT. Compare before you commit — we'll help you choose the right system.
See the Eighteeth Nanopix →
Common questions
Can one CS 7600 serve multiple surgeries?
Yes — it's designed specifically for shared multi-surgery use. Up to 10 workstations per unit, with multiple units connectable on the same network for larger practices.
How long do the Smart Plates last?
Each plate is rated to 500 scan cycles. The Smart Plate chip tracks this automatically and the system alerts you when replacement is needed — no manual counting.
How do I prevent cross-contamination?

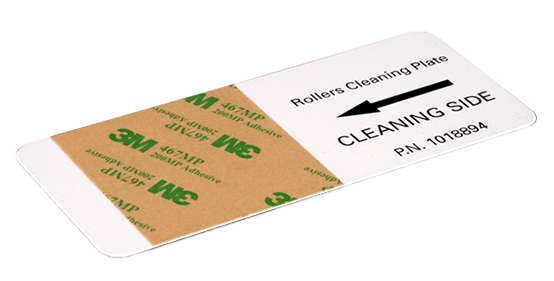

Use hygienic sheaths between each patient (available in all sizes). Mechanical parts can be cleaned and a roller cleaning plate is available for routine maintenance.
What software is required?
Carestream Dental imaging software v1.18.0 or higher. We install and configure this as part of your remote setup — it's included in the price.
What warranty is included?
1-year full replacement warranty as standard, extended to 2 years with online registration via Carestream. Extended programmes are also available.
Can I get in-person installation?
Yes — contact us for a quote based on your location. Our team covers the UK and will come to your practice to install, configure and train your whole team.
Support resources
User guide
Full PDF download
Product brochure
Specs & overview PDF
Software download
CSD imaging latest version
WhatsApp support
Speak to our team directly
Book a demo or site visit
We'll visit your practice, or bring the CS 7600 to our Yorkshire showroom. Call 01943 601222 or message us.
Also consider
Carestream CS 7200
Single-surgery chairside PSP system. Simpler workflow, lower entry cost. Plates sizes 0–2. Ideal for smaller practices or single-operatory use.
Recommended alternative
Eighteeth Nanopix Sensor
Two direct sensors from just over £2,000 + VAT. Instant images — no scanning step. Now the genuinely affordable choice for most practices.
View product

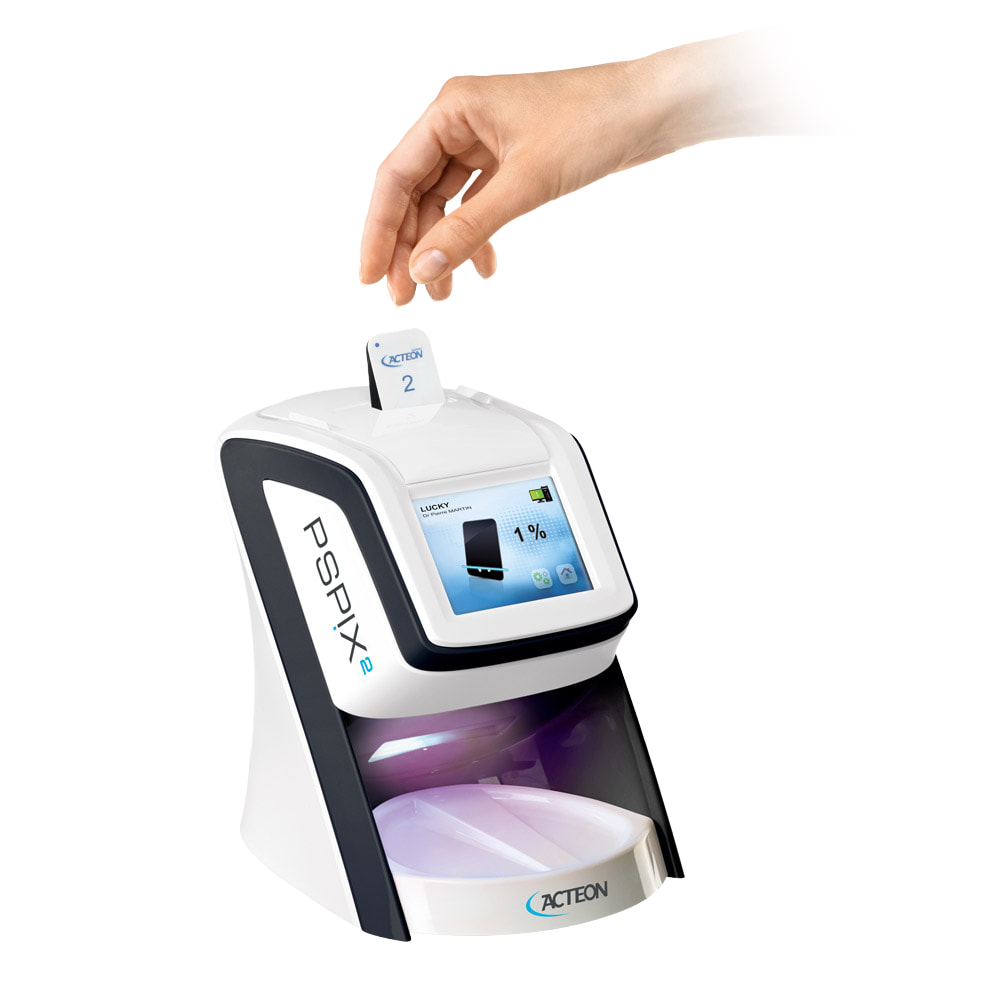

Acteon PS Pix
Chairside PSP system for single-surgery use. Compatible with CS 7600 and CS 7200 plates. Compact, quiet, USB connected.
