Exceptional imaging.
Outstanding value.

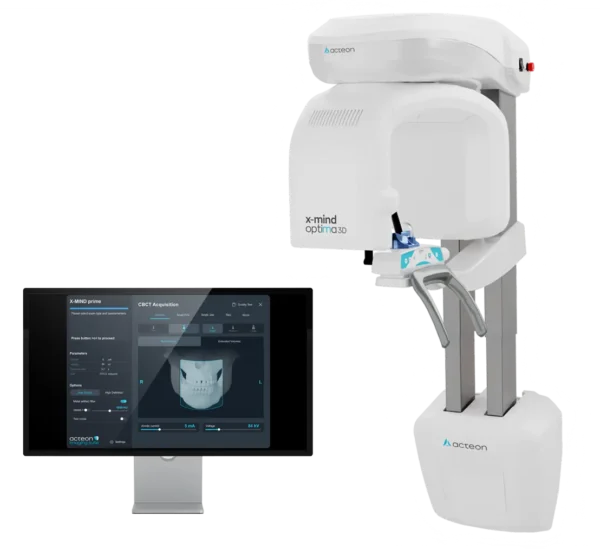

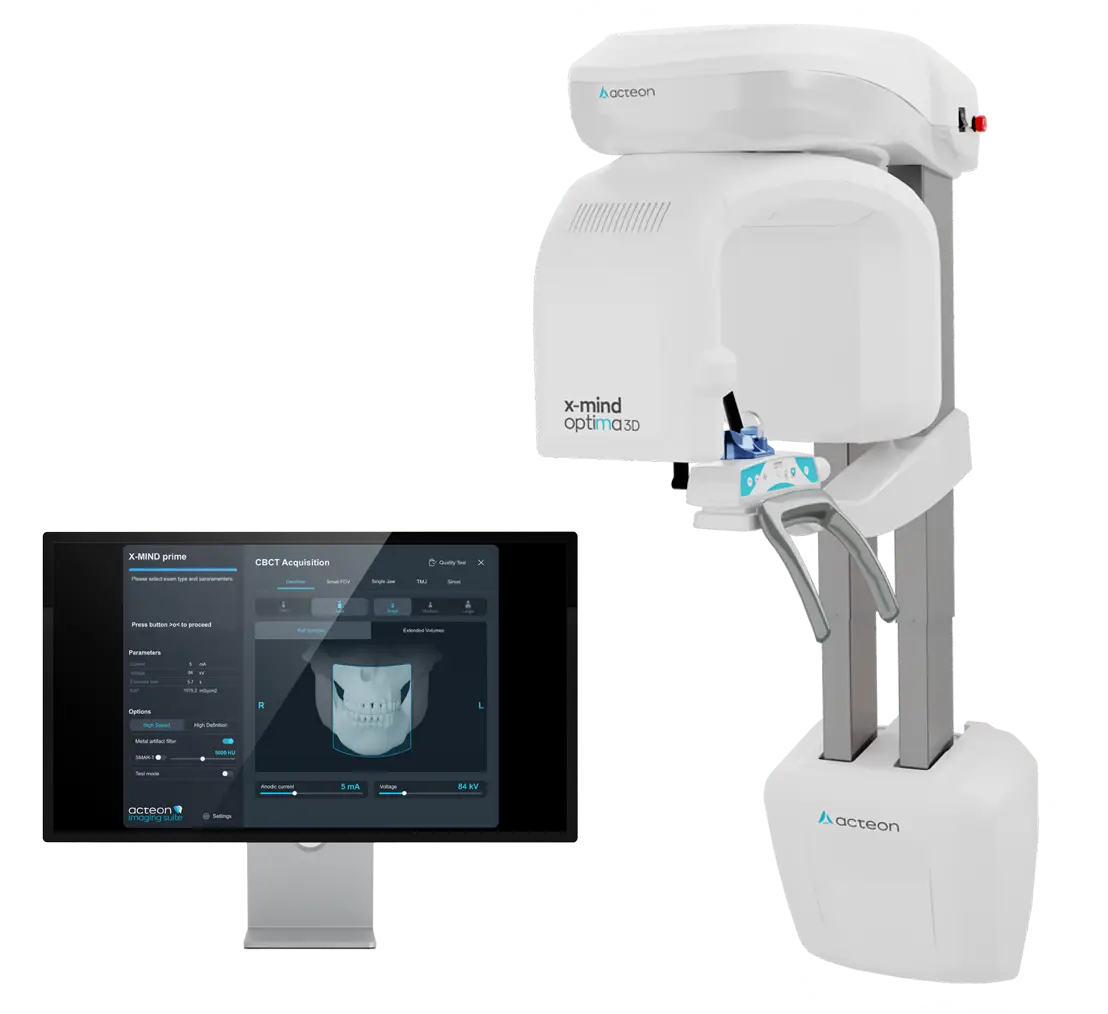

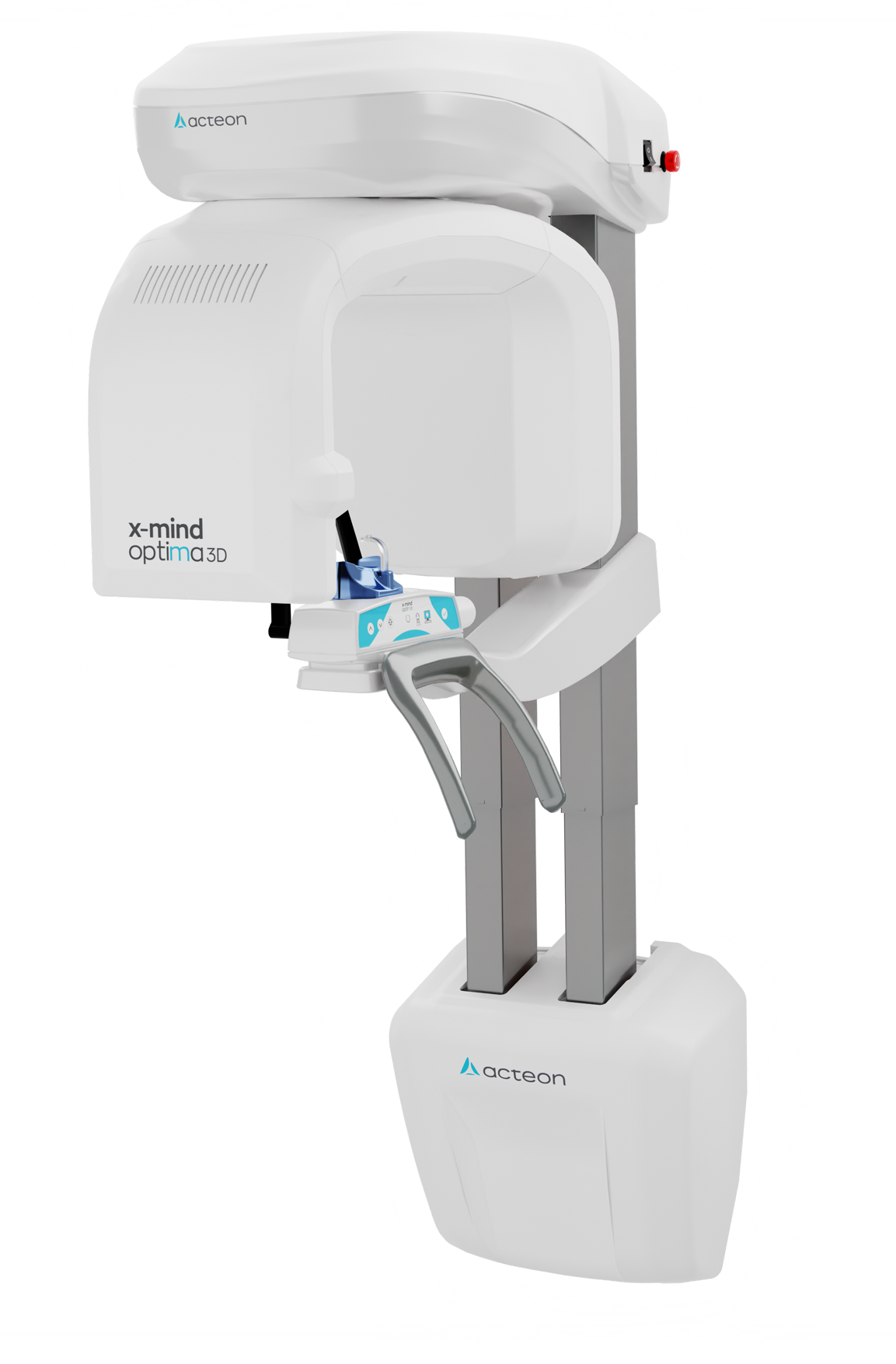

Acteon X-Mind Optima 3D · The smart CBCT for every practice
The X-Mind Optima 3D is built for busy private practices that need high-quality CBCT imaging without the high-end price tag. Out of the box you get a 12×10 cm field of view, 70 µm endo resolution, a comprehensive 2D program set — and the most intuitive CBCT software on the market.
warranty
resolution
as standard
Ceph option
Designed to be easy.
Built to impress.
The Optima 3D doesn't ask you to compromise between ease of use and image quality. You get both — from day one, straight out of the box.
Watch before
you decide.

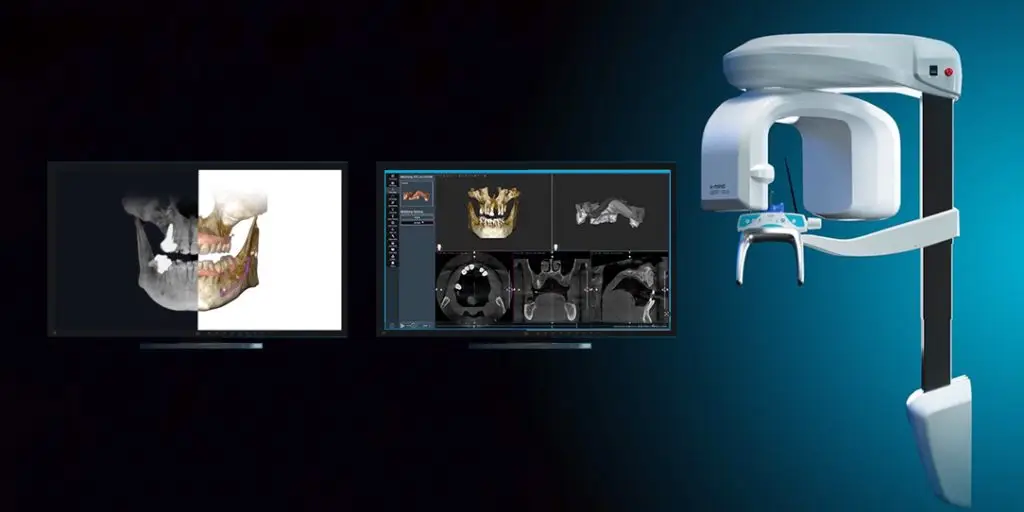

See the Optima 3D in use clinically, and watch a live demonstration of the machine and its capabilities.

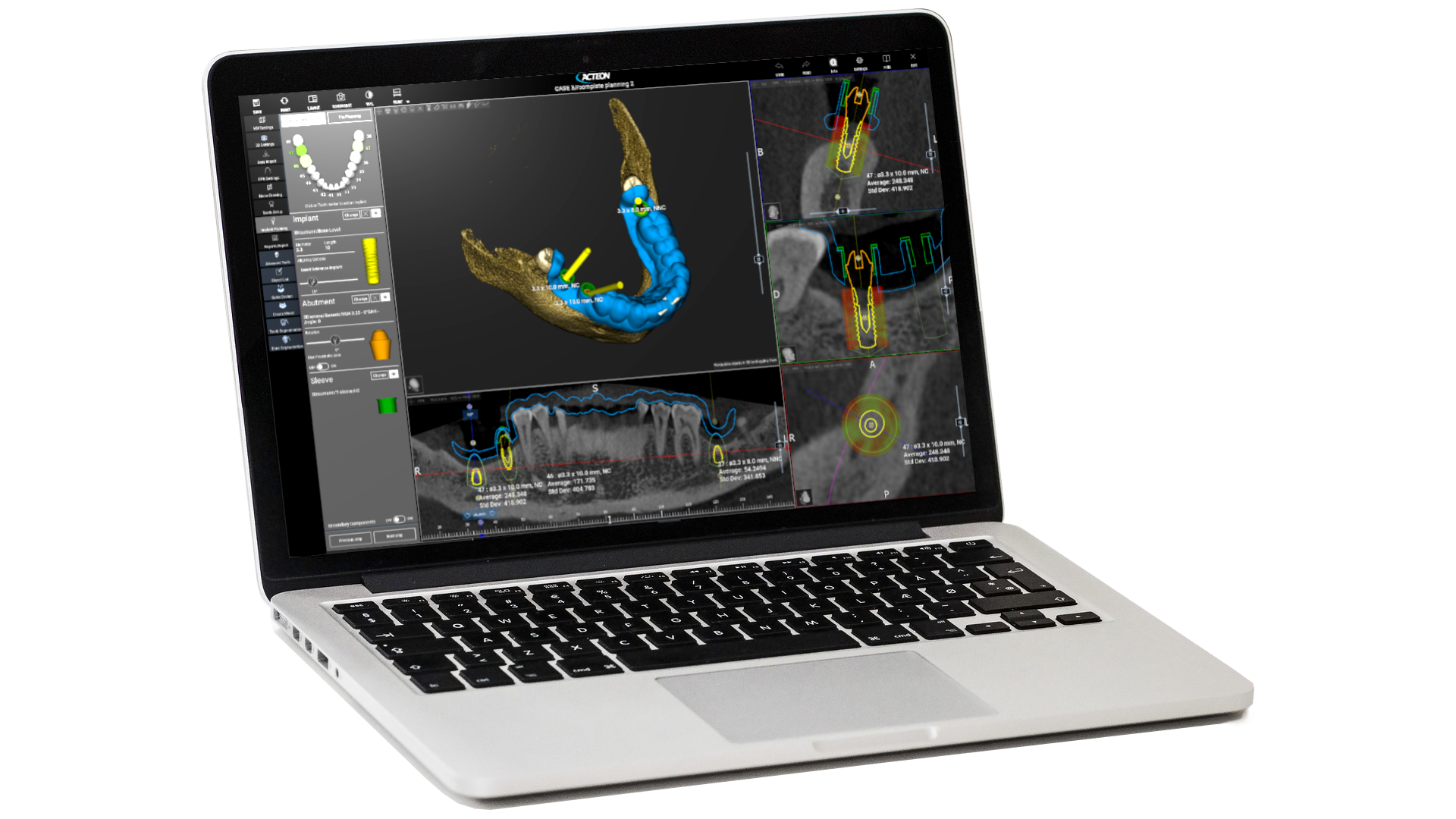

AIS 5.4 & RealGUIDE™ 5.4.
Software that thinks for you.
The Optima 3D ships with Acteon Imaging Suite (AIS) 5.4 — a beautifully designed, fast and intuitive imaging platform. Add RealGUIDE™ 5.4 PRO for full implant planning and surgical guide design in one workflow.
Imaging that's as easy
as it is powerful.
AIS 5.4 is built around clinical clarity and workflow speed. Fast loading, precise measurement tools, multi-planar reconstruction — and a modern interface your whole team can learn in minutes, not days.
RealGUIDE™ 5.4 PRO takes it further — combining CBCT data with intraoral scans, prosthetic planning and surgical guide fabrication into a single connected workflow. Optional add-on, available through 360 Visualise.
WeDiagnostiX cloud connectivity is also available — share DICOM data securely with colleagues, specialists and referring clinicians without the need for physical media.
Choose the right
setup for your practice.
The Optima 3D is available in three configurations — wall-mounted, floor-mounted, and with a cephalometric arm. All include the same 12×10 cm FOV, AIS 5.4 software and 5-year warranty.

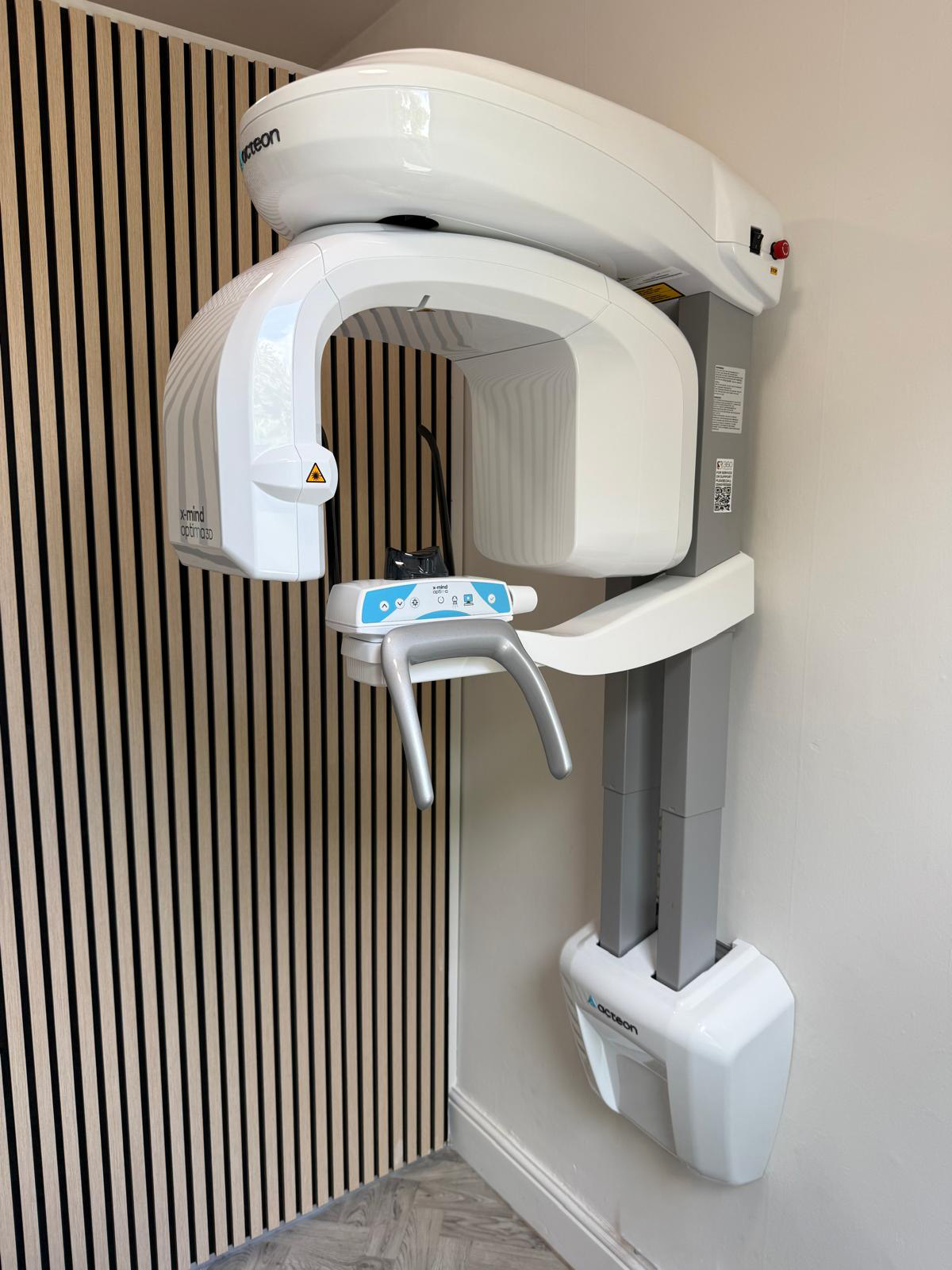

Wall-mounted Pan-CBCT. Ideal for smaller surgeries where floor space is at a premium.
- Wall-mounted installation
- Pan + CBCT (12×10 cm FOV)
- Footprint: 1107 × 1063 mm
- Weight: 69 kg
- AIS 5.4 + RealGUIDE option
- 5-year warranty
Floor-standing Pan-CBCT. The most popular choice for new installations with more room flexibility.
- Floor-mounted installation
- Pan + CBCT (12×10 cm FOV)
- Footprint: 1204 × 1063 mm
- Weight: 89 kg
- AIS 5.4 + RealGUIDE option
- 5-year warranty
Floor-standing Pan-Ceph-CBCT. Complete solution for practices with orthodontic or surgical referrals.
- Floor-mounted with ceph arm
- Pan + Ceph + CBCT
- Skull lateral/AP + carpus imaging
- Footprint: 1204 × 1859 mm
- AIS 5.4 + RealGUIDE option
- 5-year warranty
Full technical
specification.
All specifications apply across all three Optima 3D configurations unless stated.
| Tube voltage | 60–90 kV |
| Anodic current | 2–12.5 mA |
| Total filtration | ≥ 2.5 mm Al eq. @ 90kVp |
| Focal spot | 0.5 |
| Detector type | IGZO Flat Panel |
| Pixel size | 110 µm |
| Voxel size (Endo) | 70 µm |
| Voxel size (Standard) | 160 µm |
| Grey levels | 65,536 (16 bit) |
| Sensitive area | 169.3 × 169.3 mm |
| Max exposure time | Up to 14 s (standard panoramic) |
| 3D exposure time | From 5.3 s |
Every clinical
indication covered.
From single-tooth endo scans to full extended arch — all included at no extra cost.
| Full dentition | 85×93 mm (Ø×H) |
| Single jaw (max/mand) | 85×50 mm (Ø×H) |
| Mandibular / Maxillary teeth | 50×50 mm (Ø×H) |
| Frontal dentition | 50×50 mm (Ø×H) |
| TMJ | 85×90 mm (Ø×H) |
| Maxillary sinuses | 85×93 mm (Ø×H) |
| Full arch dentition | 120×100 mm (Ø×H) |
| Full arch airways | 120×100 mm (Ø×H) |
| Extended arch | 170×120 mm (Ø×H) |
| Low dose mode | Available on all programmes |
| Min. room size (wall/floor) | 120×115 cm |
| Recommended room size | 160×150 cm |
We don't just supply it.
We support it.

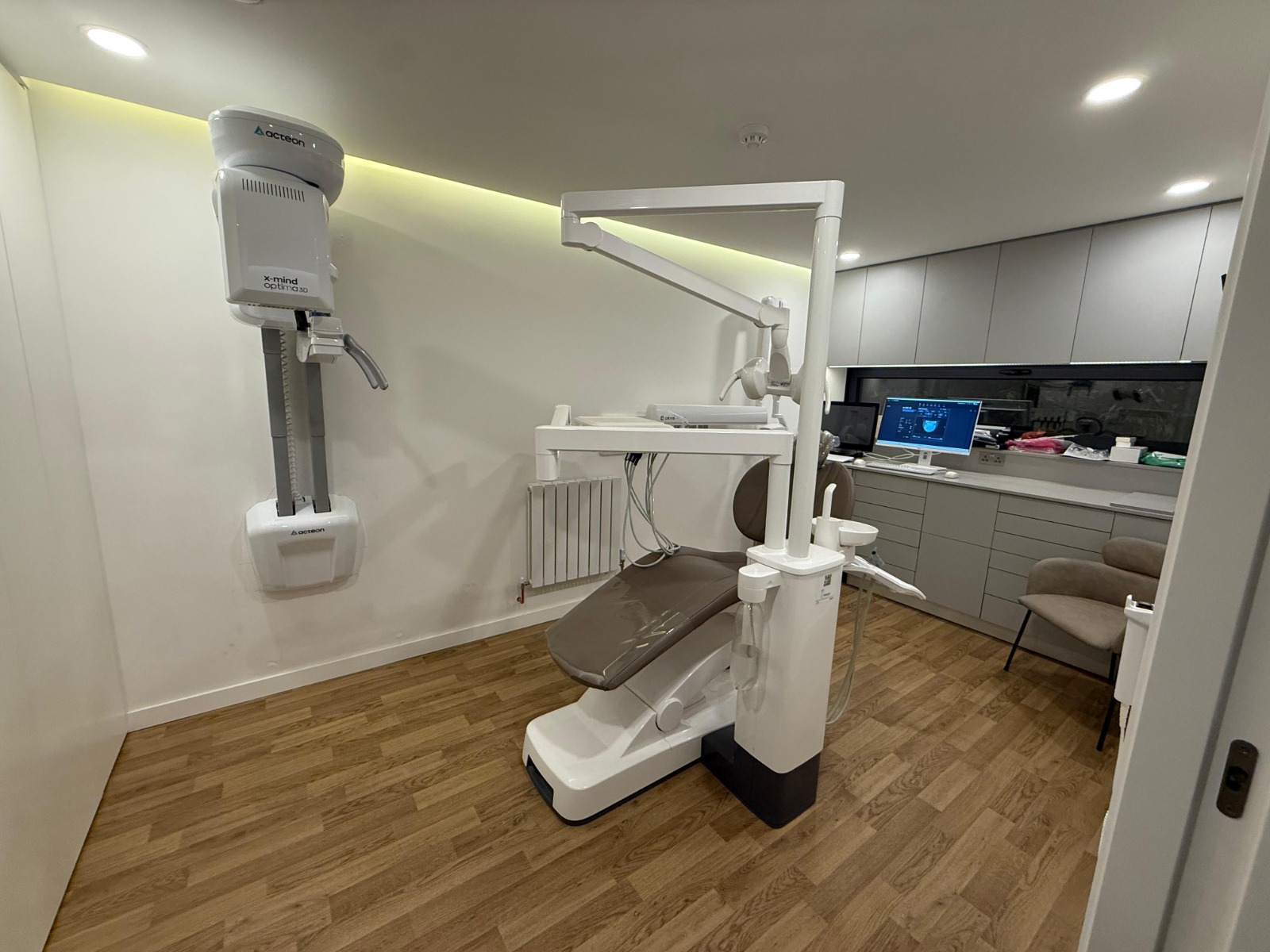

Every Optima 3D we supply comes with the full 360 Visualise experience — from room survey and installation through to ongoing clinical support. We've installed and supported more CBCT units than any independent specialist in the north of England.
Everything covered.
From survey to scan.
Ready to bring
CBCT to your practice?
Request a quote, book a demo at our Ilkley imaging centre, or call us for honest advice on whether the Optima 3D is the right fit — from a team that installs and uses CBCT every day.
