Power meets
Precision. MotorSurg.
Implant surgery, made simple.

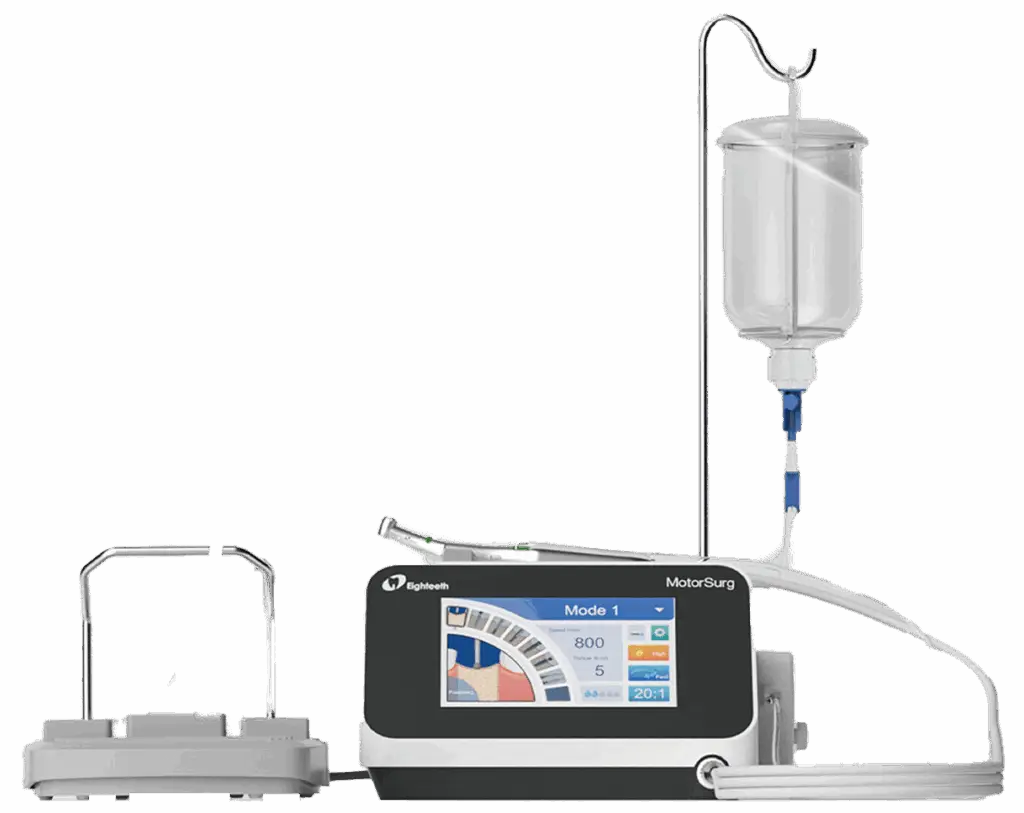

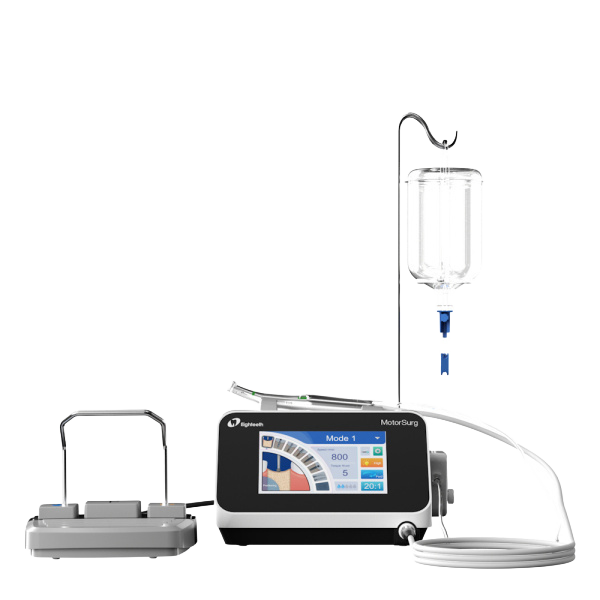

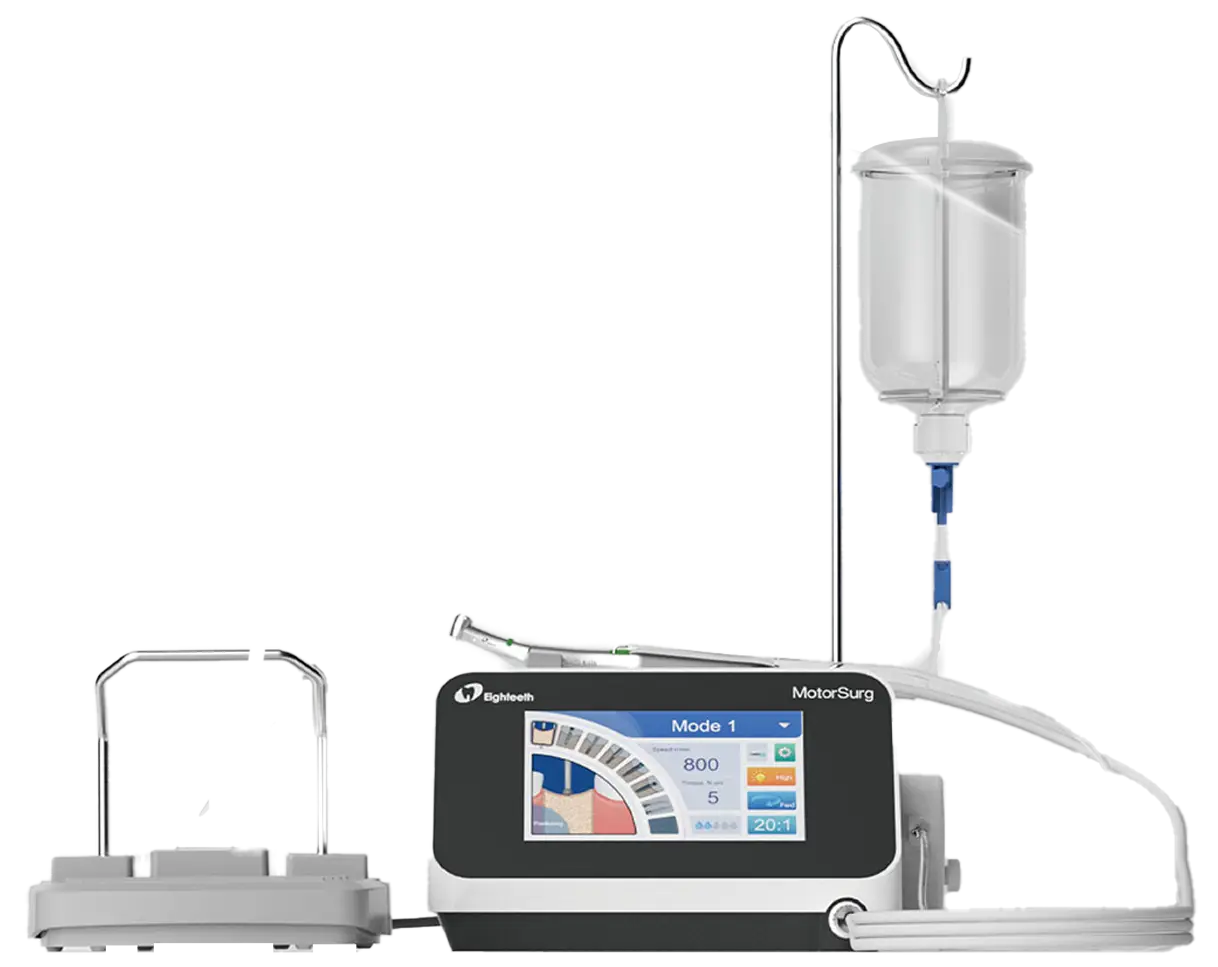

The Eighteeth MotorSurg delivers professional-grade implant surgery without the premium price tag. German-engineered bearings, 80 N·cm of torque, a hyper-sensitive foot pedal, and 8 customisable programmes — built for implant dentists who want consistent, confident results, every case.
Why the MotorSurg is the surgical motor implant dentists actually enjoy using
Every control, programme and mechanical choice has been engineered to give you stable torque, clear visibility and faster case flow — from pilot drill to final seating.
German-bearing motor
Delivers 5–80 N·cm of torque and 200–40,000 rpm across the full surgical workflow, staying stable even at ultra-low speed for delicate bone work.
Real-time torque feedback
Live torque readout on the LED touchscreen lets you feel and see bone resistance as you drill, so you can adjust technique without stopping.
One-button calibration
Calibrates both the contra-angle and electric motor in a single tap. Restores torque accuracy between patients in seconds — no service call required.
8 pre-set surgical programmes
Marking, pilot drilling, template drilling, tapping, placement, closure cap, free use and rinsing — all preset, all editable, all saved per operator.
LED contra-angle, 32,000+ lux
Adjustable white-LED illumination on the 20:1 reduction handpiece keeps the surgical site lit without shadowing — essential for posterior placements.
Underside water inlet
The irrigation inlet sits on the bottom of the contra-angle — no tubing at the front of the head. Less mouth clutter, more patient comfort, fewer scratches.
Sensitive 2 mm foot pedal
The multi-functional pedal activates at just 2 mm of travel — ten times more responsive than typical implant pedals. Start, stop, switch programme and reverse without taking your eyes off the field.
High-output irrigation pump
Quiet peristaltic pump delivers up to 130 ml/min of chilled saline with fully adjustable flow — enough cooling for every drill diameter in the kit.
Smart error reminders
On-screen prompts guide you through common surgical issues — over-torque, poor irrigation, contra-angle mis-fit — keeping your surgery on track.
The MotorSurg, start to finish
Two short walkthroughs from the Eighteeth clinical team — set-up out of the box, then how to use the programme menu for a real implant case.
Setup & first use
Unbox, connect the handpiece and irrigation line, fit the pump cassette, and run your first calibration — ready for surgery in under five minutes.
Programmes & settings
Walkthrough of the 8 pre-set surgical programmes, how to edit torque and speed per step, save custom sequences, and export case data by USB.
Designed for every step of your implant workflow
- Torque range 5–80 N·cm covers pilot drilling through to final seating without swapping motors
- Ultra-low speed control for precise bone tapping and guided surgery cases
- 20:1 reduction contra-angle with LED illumination supplied as standard
- Colour LED touchscreen with intuitive programme navigation — no manual required for day-to-day use
- Sensitive multi-functional foot pedal with start/stop, water, programme switch and forward/reverse
- Peristaltic irrigation pump up to 130 ml/min with adjustable flow per programme
- IPX6-rated control unit for robust clinical use and easy decontamination
- USB data export for case records and audit trails
- Supplied, installed, trained and supported across the UK by the 360 Visualise team
| Speed | 200 – 40,000 rpm |
|---|---|
| Torque | 5 – 80 N·cm |
| Programmes | 8 pre-set, fully editable |
| Max pump output | 130 ml/min |
| Contra-angle | 20:1 reduction, LED |
| Screen | LED colour touchscreen |
| LED brightness | > 32,000 lux (white) |
| Foot pedal activation | 2 mm travel |
| Motor cable length | 2 m |
| Dimensions | 240 × 265 × 150 mm |
| Weight | 3.65 kg |
| Power supply | 220–240 V / 100–120 V, 50/60 Hz |
| Protection rating | IPX6 |
| Data export | USB flash drive |
MotorSurg Irrigation Tubes — 10 Pack
Single-use sterile irrigation tubing designed for the MotorSurg peristaltic pump. Keep a pack on the shelf so your implant surgeries never wait on consumables. Ships next working day.
Ready to upgrade your implant workflow? Installation, training and ongoing support included. We will not be beaten on price — Price Match Guaranteed.
Buy MotorSurgFrequently asked questions — Eighteeth MotorSurg
What comes in the box with the MotorSurg?
How does the MotorSurg compare to W&H, NSK and Bien-Air implant motors?
Is the MotorSurg compatible with my existing implant system?
How is the MotorSurg sterilised between patients?
Does 360 Visualise offer training and installation?
Where do I buy replacement irrigation tubes?
Ready to bring precision implant surgery to your practice?
Talk to the 360 Visualise team. We'll arrange a demonstration, confirm pricing, and support you from installation through to training and beyond.
