Eighteeth · Handheld intraoral X-ray

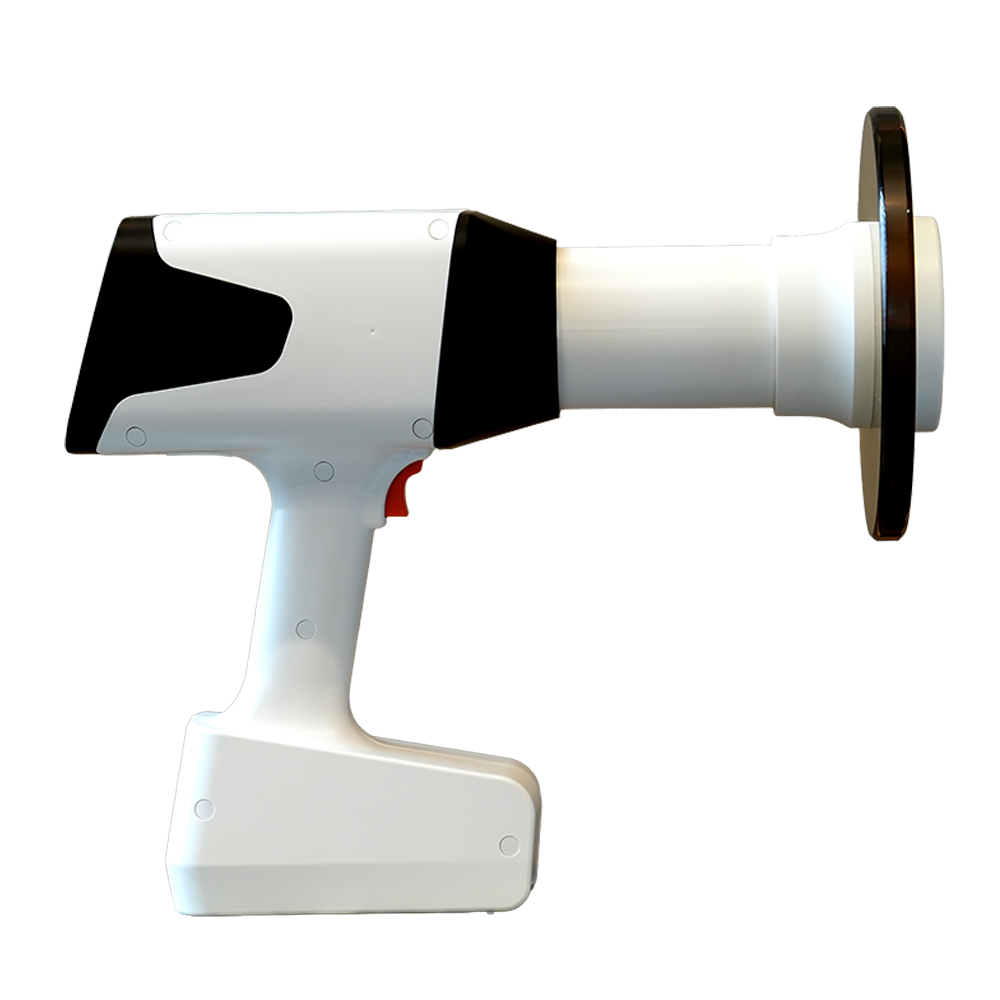

Eighteeth Hyperlight M
handheld X-ray
One X-ray unit for every surgery. Pick it up, carry it to the chair and take the picture. The screen shows you where to aim, so you get it right first time.
Handheld X-ray unit
£1,800 + VAT · £2,160 inc. VAT
In stock. Order before 3pm and we send it the next working day. Price match guaranteed.
Included in the price
Aiming guide
Helios AiM sheath for your sensor.

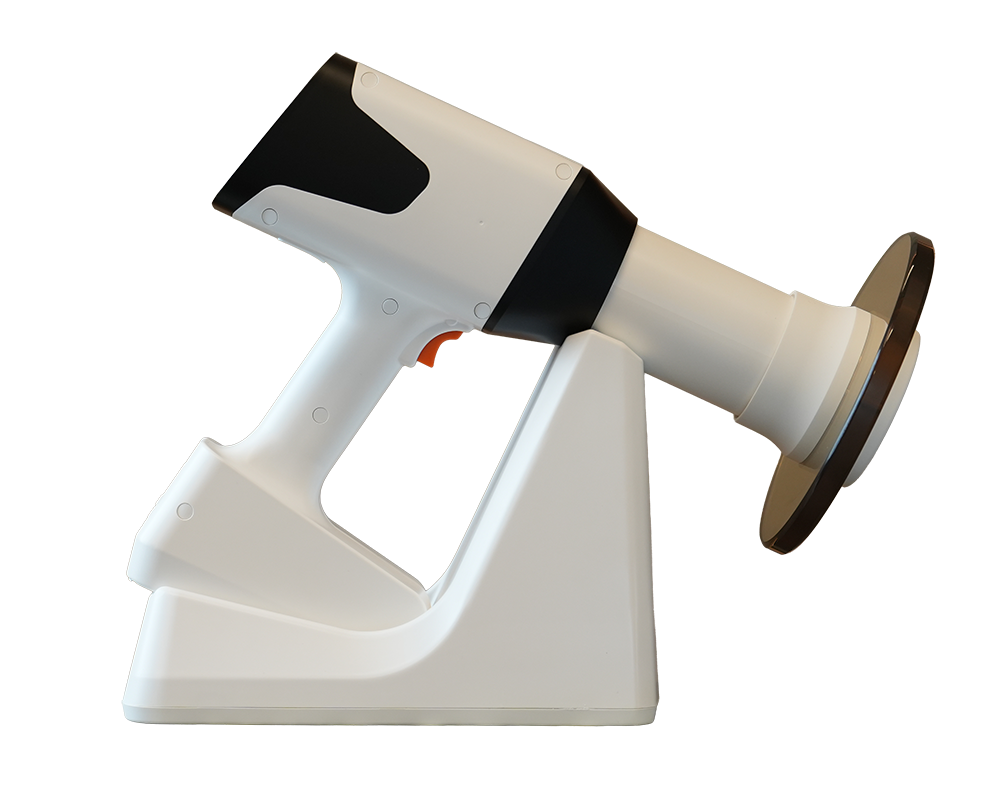

Charging stand
With battery and power supply.
Works with any size 1 or 2 sensor · 1-year warranty · UK phone support
Watch it work
Carry it. Aim it. Take the picture.
- One unit, several surgeries. Carry it to the chair.
- It shows you where to aim. Distance, centre and angle, on the screen.
- Works with your sensor. Any size 1 or size 2.
- Battery powered. More than 300 exposures on one charge.
- Built-in shield. It protects the operator from back-scatter.
- Presets on the touchscreen. Pick the patient and press.
- 300+exposures per charge
- 2 kgwith battery
- 60–70kV tube voltage
- 1 & 2sensor sizes
- 1 yearwarranty
Helios AiM
Four steps to a good picture
A magnetic sheath clips to your sensor. The Hyperlight M finds it in the patient’s mouth and guides you on screen.

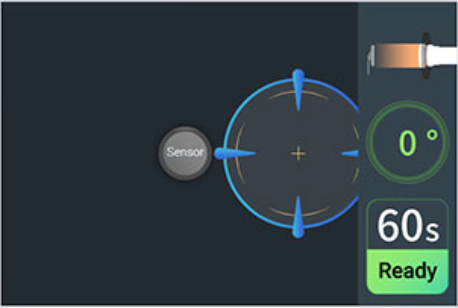

1. Distance
The screen shows if you are too close or too far.

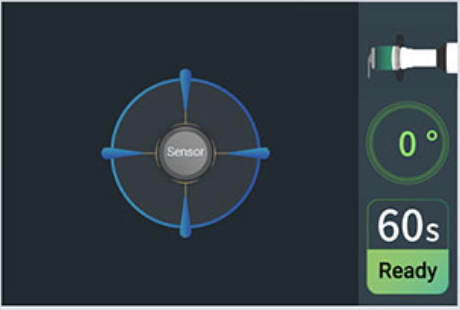

2. Centre
Line the beam up with the middle of the sensor.

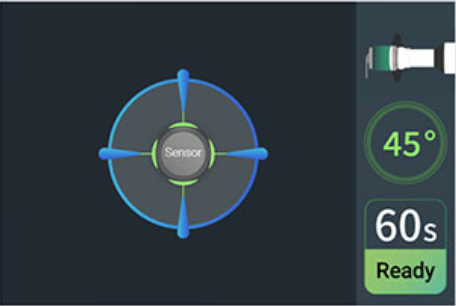

3. Angle
Straighten up. No cone-cuts. No distortion.

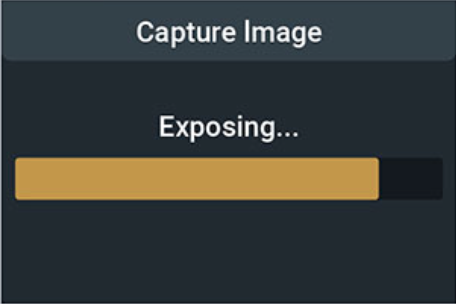

4. Expose
Green light. Press. The picture is taken.
Price
Eighteeth Hyperlight M price: £1,800 + VAT
By law, a new X-ray unit needs a critical examination before you use it on patients. We can arrange it, or you can use your own Radiation Protection Adviser.
Recommended · ready to use
Hyperlight M + critical exam
£2,050 + VAT
£2,460 inc. VAT · unit £1,800 + exam £250
- Hyperlight M handheld X-ray unit
- Charging stand, battery and power supply
- Helios AiM sheath for size 1 and 2 sensors
- Critical examination by our Radiation Protection Adviser, at your practice
- 1-year manufacturer’s warranty
- Phone support from our UK team
Unit only · you use your own RPA
Hyperlight M
£1,800 + VAT
£2,160 inc. VAT
- Hyperlight M handheld X-ray unit
- Charging stand, battery and power supply
- Helios AiM sheath for size 1 and 2 sensors
- You arrange your own critical examination
- 1-year manufacturer’s warranty
- Phone support from our UK team
Seen it cheaper? Send us a written UK quote and we’ll match it. Finance is available through Bramar, Performance Finance and Aspired Finance, subject to status. See our finance page or message us on WhatsApp.
What it does for you
Why choose the Eighteeth Hyperlight M handheld X-ray
Six features, what each one does, and what it means in your practice.
Handheld and portable
About 2 kg with the battery. Carry it from surgery to surgery.
One X-ray unit, not one in every room.
Helios AiM tracking
The unit finds the sheath on your sensor and guides distance, centre and angle on screen.
Fewer retakes, whoever takes the picture.
Works with your sensor
The sheath fits standard size 1 and size 2 intraoral sensors.
Keep the sensor you already own.
Battery powered
A lithium-ion battery gives more than 300 exposures per charge. It charges on its stand.
No cable. No wall mount.
Built-in back-scatter shield
0.3 mm lead-equivalent shielding sits between the operator and the patient.
Protection is part of the unit.
Touchscreen presets
Adult, child, peri-apical and bitewing presets on a colour touchscreen.
The right exposure in one tap.
Need a sensor too? See the Eighteeth NanoPix and the Carestream RVG.
One unit
It lives on its stand. It goes where you go.
- Share it across two, three or more surgeries.
- No wall-mount installation and no surgery out of action.
- A second unit for a busy implant or endodontic practice.
- Always charged. Put it back on the stand between patients.
The detail
Eighteeth Hyperlight M technical specifications
- X-ray generator
- High-frequency DC
- Tube voltage
- 60 to 70 kV
- Tube current
- 2 mA
- Focal spot
- 0.4 mm
- Exposure time
- 0.02 to 2.0 s
- Shielding
- 0.3 mm lead equivalent, built-in back-scatter shield
- Sensor compatibility
- Size 1 and size 2 intraoral sensors
- Helios AiM sheath
- Magnetic, reusable
- Battery
- Lithium-ion, 300+ exposures per charge
- Weight
- About 2.0 kg with battery
- Display
- Colour touchscreen
- Presets
- Adult, child, peri-apical, bitewing
- Warranty
- 1 year, manufacturer
Using it safely
Four things to know
The shield is built in
A back-scatter shield with 0.3 mm lead-equivalent protection is part of the unit.
It needs a critical exam
The law (IRR17) requires one before a new X-ray unit is used on patients. We can arrange it for £250 + VAT.
Your RPA sets the rules
Your Radiation Protection Adviser will tell you how to use a handheld unit in your practice. Follow their local rules.
We answer the phone
If you have a question about setting it up or using it, call us on 01943 601222.
Common questions
Eighteeth Hyperlight M questions answered
How much does the Eighteeth Hyperlight M cost in the UK?
£1,800 + VAT (£2,160 inc. VAT) from 360 Visualise. With a critical examination by our Radiation Protection Adviser it is £2,050 + VAT (£2,460 inc. VAT).
What is a critical exam and why do I need one?
A critical examination is a legal requirement under IRR17 before a new X-ray unit is used on patients. It checks that the equipment and its safety features work as they should. Add ours to your order for £250 + VAT, or use your own Radiation Protection Adviser.
Which sensors does it work with?
The Helios AiM sheath fits standard size 1 and size 2 intraoral sensors. It clips on with magnets and can be wiped clean and used again. Call us on 01943 601222 and we’ll check your sensor before you order.
How does the aiming guide work?
The sheath has small magnetic markers. The Hyperlight M detects them and works out where the sensor is. The screen then guides you: adjust the distance, centre the beam, correct the angle, and expose.
How long does the battery last?
A full charge is rated for more than 300 exposures. The unit charges on its stand, and a full charge takes about two hours.
Can I use it for domiciliary visits?
It is battery powered and portable, so it suits visits away from the practice. Ask your Radiation Protection Adviser first. You must meet IRR17 wherever you use it.
What happens after I order?
Order before 3pm and we send it the next working day. If you chose our critical exam, our Radiation Protection Adviser contacts you after delivery to arrange a visit. You can use the unit on patients once the exam is signed off.
What warranty does it come with?
A 1-year manufacturer’s warranty, with phone support from our UK team.
Eighteeth Hyperlight M. £1,800 + VAT. In stock.
One handheld X-ray for every surgery. Order before 3pm for next working day dispatch.
