Size 0
PSPIX2 Imaging Plate Size 0
22 × 35 mm · Paediatric periapical · 2 pack
£99.00 £89.00 + VAT
Add to basketActeon · Phosphor plate scanner

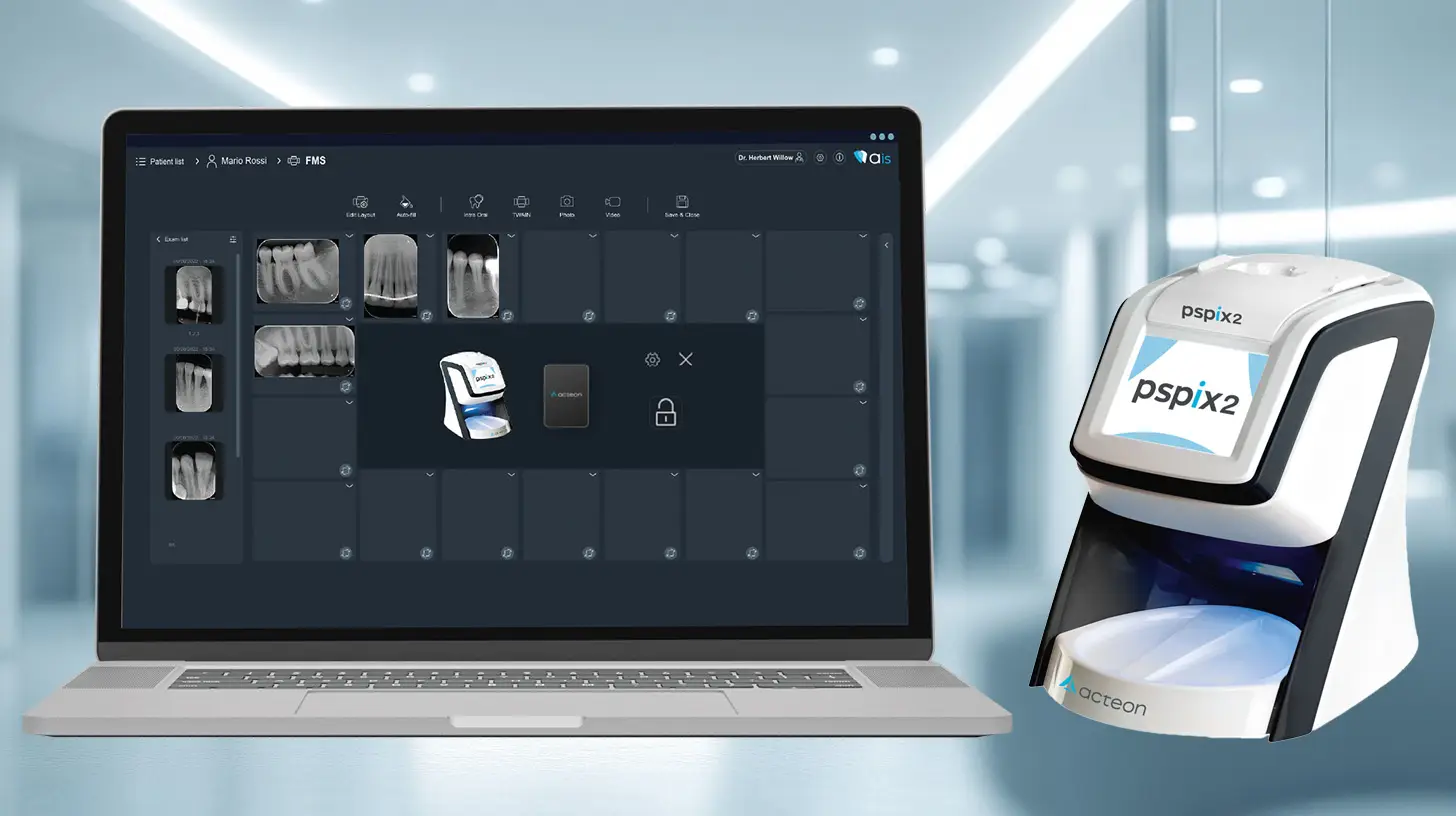

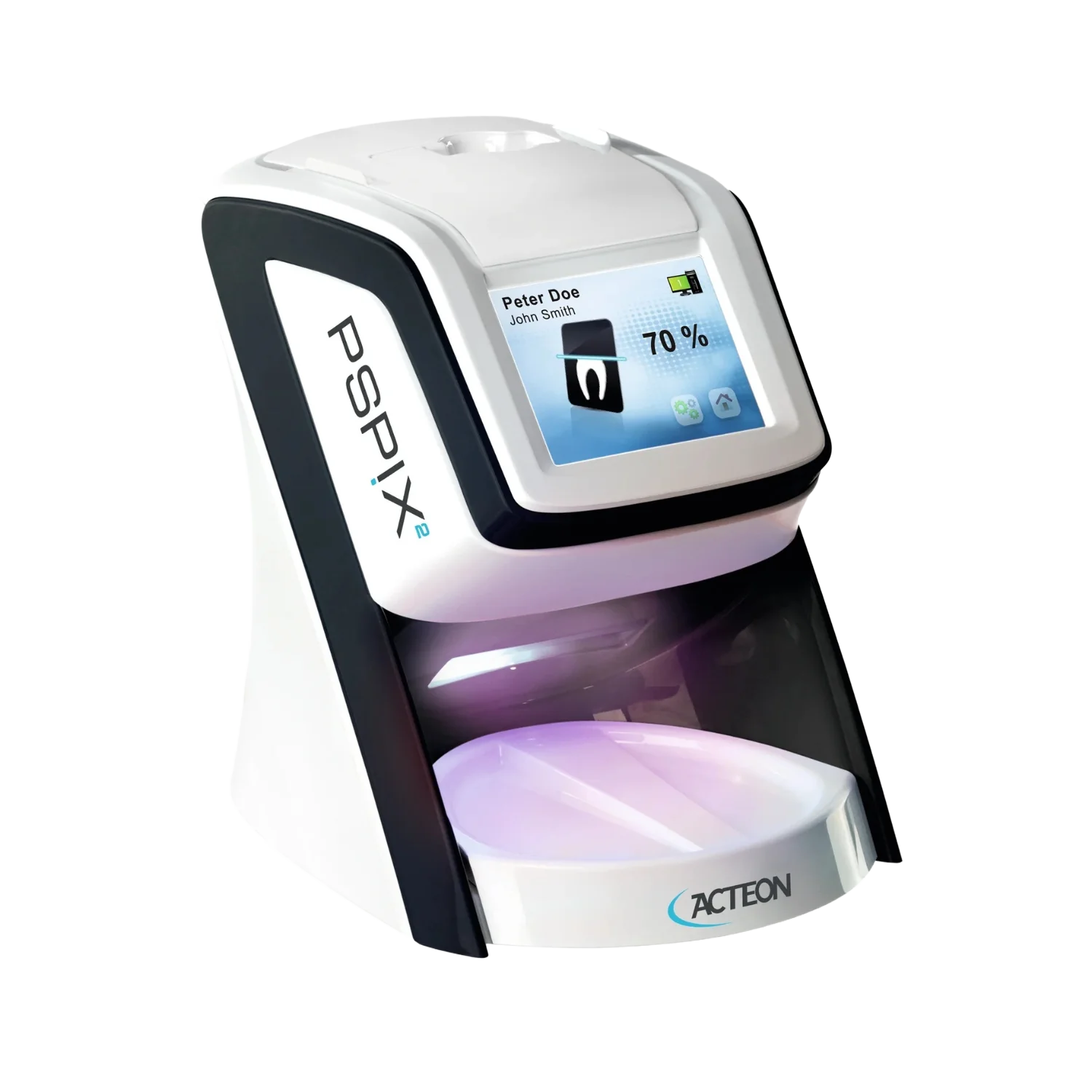

Acteon PSPIX2
phosphor plate scanner
The Acteon PSPIX2 – also written PSPiX 2 or PSPIX² – is the world’s first personal imaging plate scanner, built for single-surgery chairside use. 20 lp/mm resolution. First image in under three seconds. No sharing, no waiting, no walking to another room.
£5,915.00 £3,999.00 + VAT
Your PSPIX2 deal includes
- Free remote installation
- 2-year warranty
- FIBER2PIXEL technology
- Chairside single-user
- 20 lp/mm
- Plate sizes 0–4
- Autoclavable parts
Free remote installation · 2-year warranty · RDN-delivered training · Finance available
Included free with every PSPIX2
Free remote installation. No engineer visit, no waiting.
You don’t need to book an installation slot or take a surgery out of action. We ship the PSPIX2 to you and set it up remotely, at no cost.
- 01
We ship it
Your PSPIX2 arrives at the practice, ready to unbox.
- 02
You plug it in
Connect power and an Ethernet cable. That’s all you need to do.
- 03
We log in and set it up
Our team connects remotely, installs AIS imaging software, sets up the network and routes images to each workstation.
- No installation charge
- No engineer visit
- No downtime waiting for a slot
The workflow
How the Acteon PSPIX2 works
Four steps, and the scanner handles three of them on its own.
-
01
Shoot
Take the X-ray as normal with the thin, flexible imaging plate – comfortable for every patient.
-
02

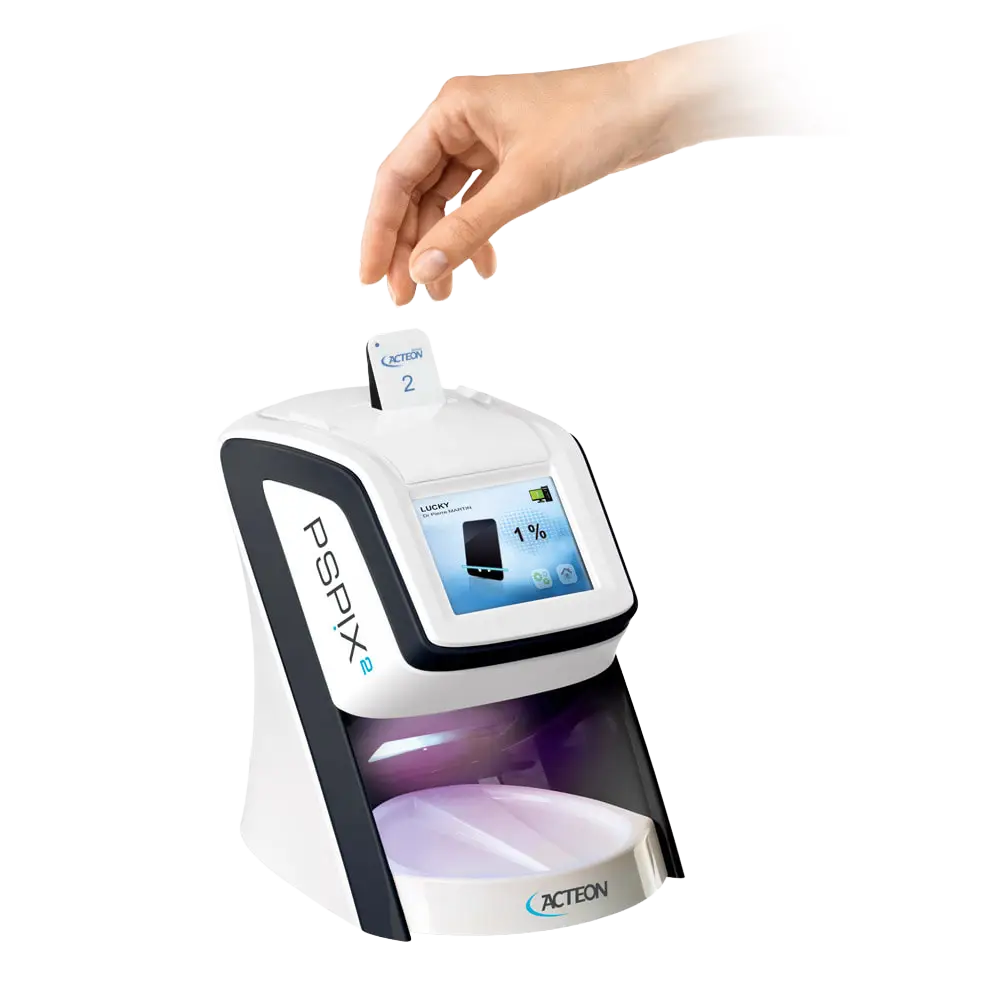

Insert
Select your workstation on the touchscreen. The door opens automatically as the plate goes in.
-
03
Scan
The PSPIX2 auto-detects plate size, scans and optimises the image in under three seconds.
-
04
View
Image routes to your workstation. The plate is auto-erased and ejected, ready to reuse.
Specification
Why choose the PSPIX2 phosphor plate scanner
Six things that separate it from every other PSP system on the UK market.
FIBER2PIXEL technology
Broad-spectrum optical microfibres guide photon transmission from plate to sensor, delivering greater differentiation of dental tissue than standard PSP systems.
20 lp/mm resolution
Class-leading resolution for a PSP system. Bone, roots, pulp and fine anatomic structures resolve with precision.
First image in under 3 seconds
Fast mode delivers in 1.6–2.7 seconds, HD mode in 2.1–3.6 seconds. No workflow disruption between patients.
Autoclavable parts
The only PSP scanner with removable parts compatible with thermal washer-disinfectors and autoclave sterilisation.
Plate sizes 0 to 4
Covers paediatric through to occlusal. Thin, flexible plates improve comfort, particularly for gag-prone patients.
Compact footprint
154 × 204 × 193 mm and 2.6 kg. The smallest PSP scanner available – it sits chairside without taking clinical space.
Acteon exclusive
FIBER2PIXEL technology explained
Standard PSP scanners use a direct laser-to-sensor path that loses signal along the way. The PSPIX2 uses broad-spectrum optical microfibres to guide photon emissions from the imaging plate to the sensor, preserving and enhancing detail that would otherwise be lost.
The result is greater differentiation of dental tissue. Bone, roots, pulp and fine anatomy resolve with a precision that surpasses conventional radiological examination – so your diagnosis is both faster and more confident.
See it in action
The PSPIX2 in under two minutes
Plates & consumables
Acteon PSPIX2 imaging plates in stock now
Genuine Acteon plates, supplied in packs of two. Thin, flexible, and reusable hundreds of times. Order before 2pm and we ship same day.
Size 1
PSPIX2 Imaging Plate Size 1
24 × 40 mm · Child & adult periapical · 2 pack
£99.00 £89.00 + VAT
Add to basket
Size 2
PSPIX2 Imaging Plate Size 2
31 × 41 mm · Adult bitewing & periapical · 2 pack
£99.00 £89.00 + VAT
Add to basket
Maintenance
PSPIX2 Cleaning Plate
Clears dust and residue from rollers and optics · Use every 50 scans
£32.00 £19.99 + VAT
Add to basketNot sure which size you need? Call 01943 601222 or message us on WhatsApp and we’ll check it against your scanner.
In practice
A scanner for your surgery, not the corridor
The PSPIX2 was designed around a simple idea: every dentist should have their own scanner, chairside, always available. No booking it. No waiting for a colleague to finish. No walking down the hall mid-appointment.
You expose the plate, insert it, and the image appears on your screen in seconds – without breaking the flow of treatment.
- You are the single user of the scanner
- No need to move to another room
- Image in the patient file in seconds
- Colour status light shows availability at a glance
- Compatible with Carestream CS 7600 and CS 7200 plates
Included

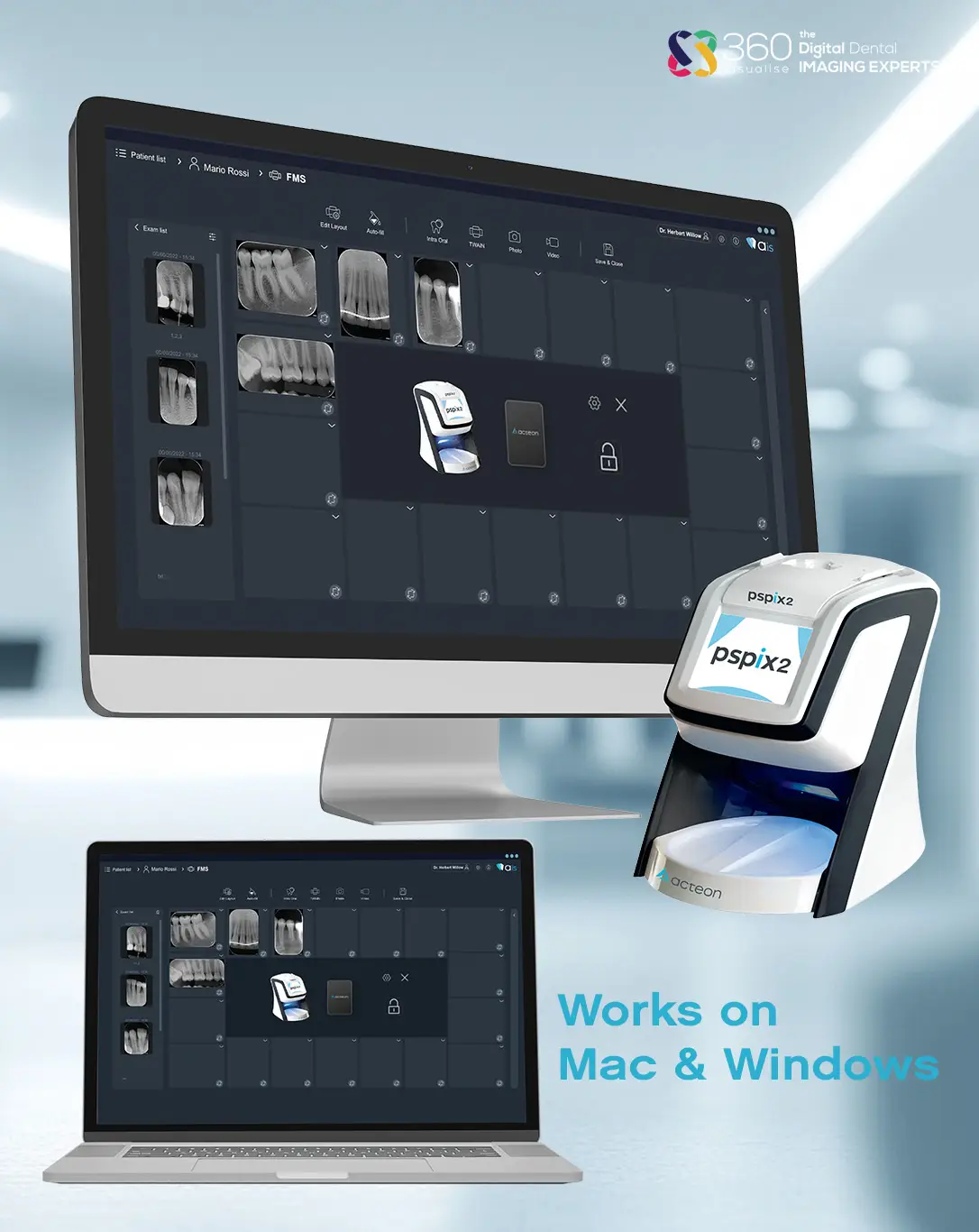

AIS imaging software included
Every PSPIX2 ships with AIS (Acteon Imaging System) and its licence. AIS replaces Acteon’s legacy SOPRO Imaging software. It gives you advanced X-ray image processing, runs on Windows and Mac, with open format output compatible with all major practice management systems.
It covers the full breadth of clinical work: cariology, periodontics, implantology, endodontics, orthodontics and paediatric dentistry.
The detail
Acteon PSPIX2 technical specifications
- Resolution
- 20 lp/mm
- Scan time – fast
- 1.6–2.7 seconds
- Scan time – HD
- 2.1–3.6 seconds
- Imaging technology
- FIBER2PIXEL fibre optic
- Connection
- Ethernet RJ-45
- Plate sizes
- 0, 1, 2, 3, 4
- Dimensions
- 154 × 204 × 193 mm
- Weight
- 2.6 kg
- Voltage
- 100–240V ~ 50–60 Hz
- Software
- AIS (Acteon Imaging System)
- OS compatibility
- Windows & Mac
- Hygiene
- Autoclavable parts
- Warranty
- 2 years
- Manufacturer code
- S7020013
In the box
What’s in the PSPIX2 complete kit
- Acteon PSPIX2 imaging plate scanner
- 4 imaging plates (2 × size 1, 2 × size 2)
- 200 bags and covers for imaging plates (100 × size 1, 100 × size 2)
- Imaging plate storage box
- Stylus for the touchscreen
- 10 samples of Soprowipes
- Power supply (100–240 VAC)
- Ethernet cable
- AIS (Acteon Imaging System) software and licence
- FREE remote installation
- FREE Eighteeth Curing Pen X (worth £399)
2
Year warranty
Every PSPIX2 comes with a 2-year warranty, backed by our Yorkshire-based support team.
Buying from us
Why buy your PSPIX2 from 360 Visualise
Best price guarantee
We’ll match any genuine like-for-like quote. No quibble.
Free remote installation
We ship it to you, then log in remotely to configure the software, network settings and workstation routing. No engineer visit and no waiting for a slot.
Dedicated WhatsApp support
Real people, fast responses. Not a ticket queue.
RDN-delivered training
Full team training from a registered dental nurse, included as standard.
Flexible finance
Bramar, Performance Finance and Aspired Finance. Spread the cost over 12–60 months.
Yorkshire-based team
You’ll always speak to the same person. No call centres.
Common questions
Acteon PSPIX2 questions answered
Can the PSPIX2 be shared between surgeries?
Yes. It supports multiple users and workstations over Ethernet, so it works either as a personal chairside unit or shared between surgeries. The colour status light shows availability at a glance – blue for available, purple for scanning, yellow for booked.
Is it compatible with Carestream CS 7600 plates?
Yes. The PSPIX2 works with CS 7600 and CS 7200 imaging plates in sizes 0 to 3, so existing plate stock carries over if you’re switching or adding a chairside unit.
What makes FIBER2PIXEL different?
Standard PSP scanners use a direct laser-to-sensor path. FIBER2PIXEL guides photon transmission through broad-spectrum optical microfibres instead, preserving signal and delivering greater tissue differentiation and contrast.
How does the autoclavable design work?
The PSPIX2 has removable parts compatible with thermal washer-disinfectors and autoclave sterilisation. This is instrument-grade decontamination rather than a surface wipe-down, and it’s unique to the PSPIX2 among PSP scanners.
What software is included?
AIS (Acteon Imaging System) ships with every unit, licence included. It replaces Acteon’s legacy SOPRO Imaging software. It provides advanced X-ray image processing, runs on Windows and Mac, and outputs in an open format compatible with all major practice management systems.
How does remote installation work?
We ship the PSPIX2 to your practice. You unbox it and plug it in. Our team then logs in remotely to install AIS, set up the network connection and route images to each workstation. It costs nothing, and you don’t need to wait for an engineer visit.
Is the free Curing Pen X included automatically?
Yes. Every PSPIX2 order comes with a free Eighteeth Curing Pen X worth £399. We add it to your delivery – you don’t need to put it in your basket.
How does it differ from the Carestream CS 7600?
The CS 7600 is a centralised multi-surgery scanner with Scan & Go patient routing, suited to sharing across a busy practice. The PSPIX2 is a personal chairside unit for single-surgery use, with autoclavable parts and FIBER2PIXEL technology. Both give excellent image quality – the right choice depends on your practice layout.
Compare
Other intraoral X-ray options
A phosphor plate scanner isn’t right for every practice. Here’s the honest comparison.

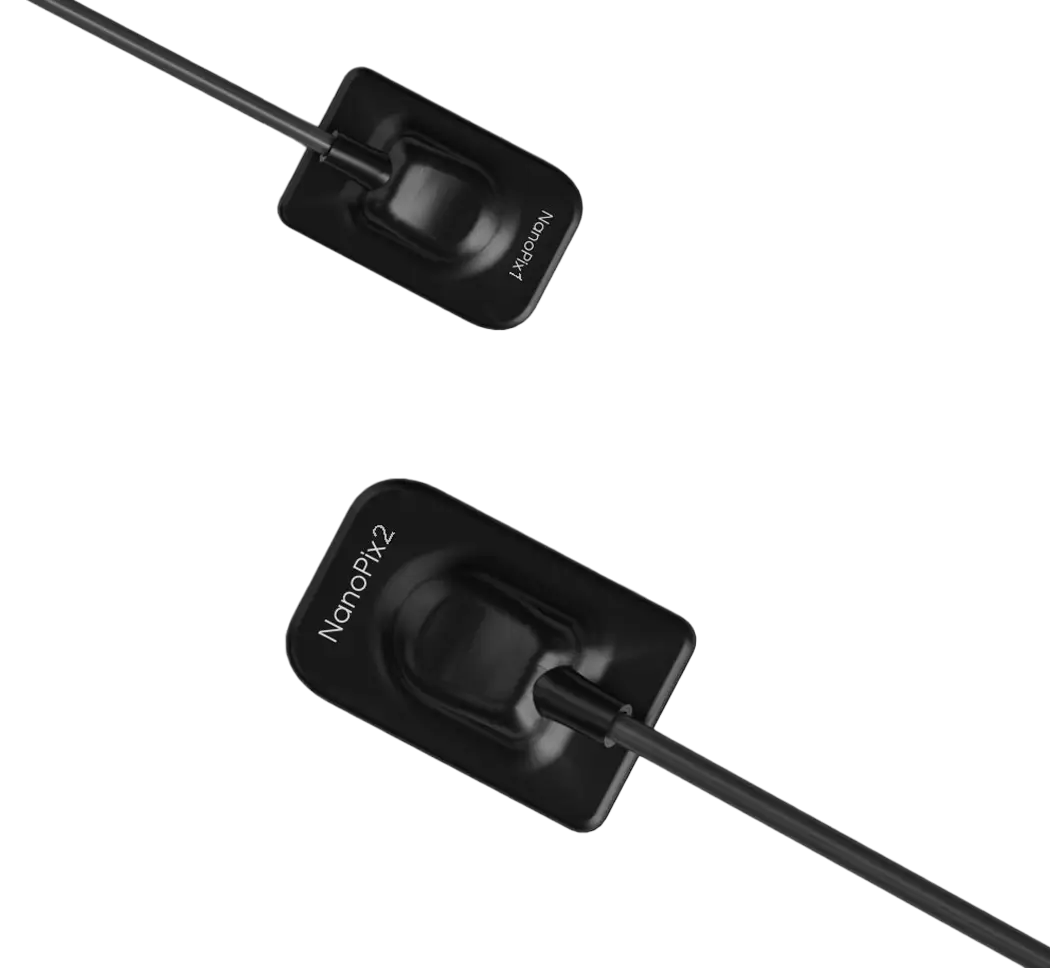

Eighteeth Nanopix
Two direct sensors from just over £2,000 + VAT. Instant images with no scanning step. The affordable direct-sensor alternative to PSP.
View product →
Carestream CS 7600
Multi-surgery PSP system with Scan & Go patient routing. One unit shared across up to 10 workstations.
View product →

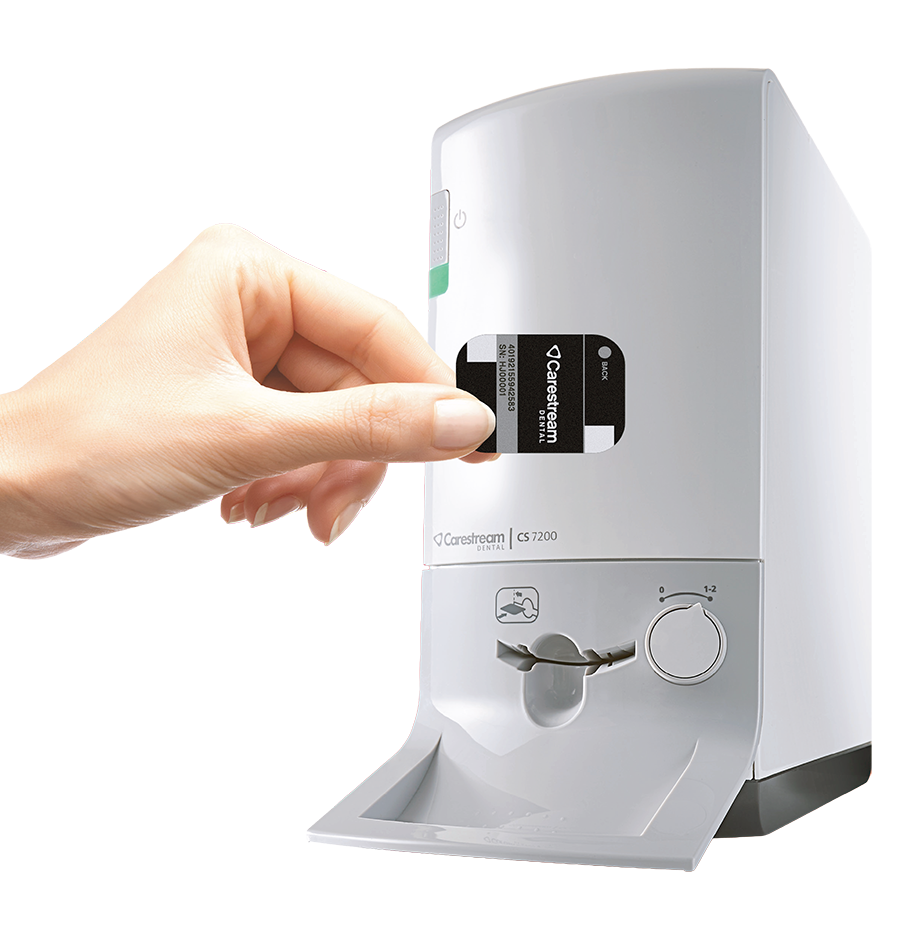

Carestream CS 7200 Neo
Entry-level chairside PSP system. Simpler workflow, lower entry cost, plate sizes 0–2.
View product →PSPIX2 accessories
Top up your plates and accessories
Genuine Acteon PSPIX2 accessories, in stock in Yorkshire. Order before 2pm and we ship same day.
Size 0
PSPIX2 Imaging Plate Size 0
22 × 35 mm · Paediatric periapical · 2 pack
£99.00 £89.00 + VAT
Add to basket
Size 1
PSPIX2 Imaging Plate Size 1
24 × 40 mm · Child & adult periapical · 2 pack
£99.00 £89.00 + VAT
Add to basket
Size 2
PSPIX2 Imaging Plate Size 2
31 × 41 mm · Adult bitewing & periapical · 2 pack
£99.00 £89.00 + VAT
Add to basket
Maintenance
PSPIX2 Cleaning Plate
Clears dust and residue from rollers and optics · Use every 50 scans
£32.00 £19.99 + VAT
Add to basketNot sure which size you need? Call 01943 601222 and we’ll check it against your scanner.
Ready to talk about the PSPIX2?
Straight advice, no sales pressure. We’ve been supplying and supporting dental imaging across the UK since 2009.
Includes a free Eighteeth Curing Pen X worth £399 · Free remote installation
