Acteon — PSP Imaging System
Acteon PSPix²
Your own scanner.
Chairside.
The PSPix² is the world's first personal imaging plate scanner — designed for single-surgery chairside use. 20 lp/mm resolution. First image in under 3 seconds. No sharing, no waiting, no moving to another room.
FIBER2PIXEL® technology
Chairside single-user
20 lp/mm resolution
All plate sizes 0–4
Autoclavable parts
Best price guarantee
Full installation included
WhatsApp support
Finance available
RDN-delivered training
PSPix² hero product image
Replace with pspix2_hero.png
Replace with pspix2_hero.png
How it works
1
Shoot
Take X-ray as normal with the thin, flexible imaging plate — comfortable for every patient
2
Insert
Select your workstation on the touchscreen. Door opens automatically when the plate is inserted
3
Scan
PSPix² auto-detects the plate size, scans and optimises the image in under 3 seconds
4
View
Image auto-routed to your workstation. Plate auto-erased and ejected ready for reuse
The scanner
PSPix² — front view, full size
Replace with pspix2_front.jpg
Front view
Replace with pspix2_front.jpg
PSPix² touchscreen close-up
Touchscreen
Plate insertion detail
Plate insertion
PSPix² side profile
Side profile
Chairside in use — clinical setting
Chairside use
Autoclavable parts removed
Hygiene / autoclave
Key features
FIBER2PIXEL® technology
Broad-spectrum optical microfibres guide photon transmission from plate to sensor — delivering striking contrast and greater differentiation of dental tissue than standard PSP systems.
20 lp/mm resolution
Class-leading resolution for a PSP system. Bone, roots, pulp and fine anatomic structures are highlighted with precision — supporting fast, accurate diagnosis.
First image in under 3 seconds
Fast mode delivers your image in 1.6–2.7 seconds. HD mode in 2.1–3.6 seconds. No waiting, no workflow disruption between patients.
Fully automated workflow
Auto-detect (plate size), auto-scan, auto-optimise, auto-eject. Select your workstation, insert the plate — PSPix² does everything else. Eco-mode activates automatically when idle.
Colour touchscreen control
Large, intuitive colour touchscreen with visual status indicators. Blue: available. Purple: scanning. Yellow: booked. Can also be controlled remotely from your workstation.
Autoclavable parts
The only PSP scanner with removable parts compatible with thermal washer-disinfectors and autoclave sterilisation. Hygiene bags and stylus included for complete cross-contamination control.
All plate sizes 0–4
Covers every clinical application from paediatric (size 0) to occlusal (size 4). Thin, flexible plates improve patient comfort — particularly beneficial for gag-prone patients.
SOPRO Imaging software
Advanced X-ray image processing included. Compatible with Windows and Mac. Covers all clinical applications: cariology, periodontics, implantology, endodontics, orthodontics and pedodontics.
Compact & elegant design

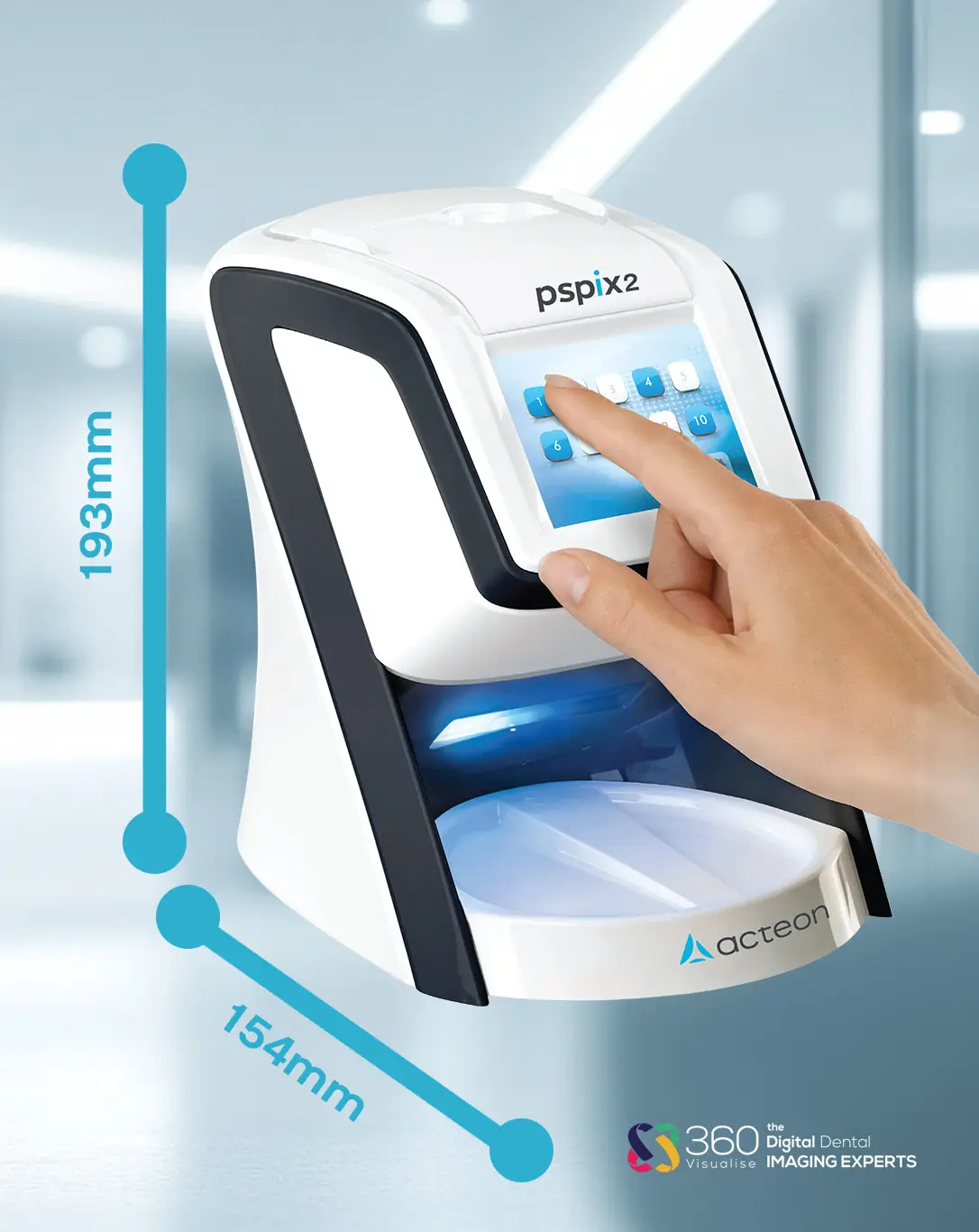

154 × 204 × 193 mm footprint. 2.6 kg. The smallest, most compact PSP scanner on the market. Sits comfortably chairside without consuming valuable clinical space.
The technology
FIBER2PIXEL® — Acteon exclusive
Striking contrast.
Accurate diagnosis.
Accurate diagnosis.
Standard PSP scanners use a direct laser-to-sensor path that loses signal. PSPix² uses broad-spectrum optical microfibres to guide photon emissions from the imaging plate to the sensor — preserving and enhancing every detail.
The result is greater differentiation of dental tissue: bone, roots, pulp and fine anatomy are highlighted with precision that surpasses the limits of conventional radiological examination. Your diagnosis is faster, and more accurate.
🔬
FIBER2PIXEL® diagram
Replace with fiber2pixel_diagram.png
Replace with fiber2pixel_diagram.png
Why the PSPix² stands apart
Your own scanner. Chairside. Always available.
- No sharing. No waiting. No leaving the surgery.Every surgery has its own scanner. Expose, insert, view — without breaking clinical flow or moving to a central scanning room.
- Fully automated — zero manual stepsAuto-detect, auto-scan, auto-optimise, auto-eject. Select your workstation, insert the plate and the PSPix² takes care of everything else.
- 20 lp/mm — leading resolution for PSPFIBER2PIXEL® technology delivers striking contrast and tissue differentiation that simply isn't possible with conventional PSP scanners.
- Hygiene beyond any other PSP scannerThe only PSP scanner with truly autoclavable parts. Removable components compatible with thermal washer-disinfectors — not just surface wipe-down.
- Compatible with CS 7600 & CS 7200 platesIf you already use Carestream PSP plates, they work with PSPix². No need to replace your existing plate stock when switching or adding a chairside unit.
Imaging plates
Five sizes. Every patient. Every clinical need.
Thin and flexible for outstanding patient comfort — particularly important for children and patients with a strong gag reflex. Plates are reusable and auto-erased after each scan.
0
22 × 35 mm
Child periapical
1
24 × 40 mm
Child / adult periapical
2
31 × 41 mm
Adult bitewing & periapical
3
27 × 54 mm
Bitewing / long bitewing
4
69 × 54 mm
Occlusal (3 × size 3)
Clinical applications
Perfectly adapted to every discipline.
FIBER2PIXEL® technology and 20 lp/mm resolution make the PSPix² the right choice across the full breadth of dental and specialist applications.
Cariology X-ray sample
Cariology
Endodontics X-ray sample
Endodontics
Implantology X-ray sample
Implantology
Periodontics X-ray sample
Periodontics
Orthodontics X-ray sample
Orthodontics
Pedodontics X-ray sample
Pedodontics
In practice
Chairside scene — nurse scanning
A scanner for your surgery.
Not the corridor.
The PSPix² was designed around a simple idea: every dentist should have their own scanner, chairside, always available. No booking it. No waiting for a colleague to finish. No walking down the hall mid-appointment.
You expose the plate, insert it, and your image appears on your screen in seconds — without breaking the flow of treatment.
- You are the single user of the scanner
- No need to move to another room
- Image in your patient file in seconds
- More time dedicated to patient care
Touchscreen close-up — workstation selection
Intuitive enough to use
from day one.
The large colour touchscreen makes the PSPix² genuinely simple. The colour-coded status light tells you at a glance whether the scanner is available, scanning, or booked. Select your workstation, insert the plate — the machine does everything else.
Learning time is measured in minutes, not days. Your team will be scanning confidently from the moment it arrives.
- Large colour touchscreen
- Colour status indicator (blue / purple / yellow)
- Remote control from workstation
- Eco-mode activates automatically
Autoclavable parts — exploded view
Hygiene that goes further
than any other PSP scanner.
The PSPix² is the only PSP scanner with removable parts compatible with thermal washer-disinfectors and autoclave sterilisation. This isn't a surface wipe-down — it's genuine instrument-grade decontamination.
Combined with hygiene bags, plate covers and a touchscreen stylus, the PSPix² gives you complete cross-contamination control without slowing your clinical workflow.
- Autoclavable removable parts
- Thermal washer-disinfector compatible
- Hygiene bags & plate covers included
- Touchscreen stylus for hygienic use
Technical specifications
Resolution20 lp/mm
Scan time — fast mode1.6–2.7 seconds
Scan time — HD mode2.1–3.6 seconds
Imaging technologyFIBER2PIXEL® fibre optic
ConnectionEthernet RJ-45
Plate sizes0, 1, 2, 3, 4
Dimensions154 × 204 × 193 mm
Weight2.6 kg
Voltage100–240V ~ 50–60 Hz
Software includedSOPRO Imaging
OS compatibilityWindows & Mac
HygieneAutoclavable parts
Why buy from 360 Visualise
Best price guarantee
We'll match any genuine like-for-like quote. No quibble.
Full installation included
We configure software, network settings and workstation routing — you just plug it in.
Dedicated WhatsApp support
Real people, fast responses. Not a ticket queue.
RDN-delivered clinical training
Full team training from a registered dental nurse — included.
Flexible finance
Bramar, Performance Finance and Aspired Finance. Spread the cost over 12–60 months.
Yorkshire-based team
You'll always speak to the same person. No call centres.
Worth considering before you decide
Is a direct sensor the better fit?
The PSPix² delivers outstanding PSP image quality with full plate flexibility. But if instant images with no scanning step are your priority, direct sensors have become genuinely affordable. The Eighteeth Nanopix gives your practice two direct sensors for just over £2,000 + VAT — no plates, no scanning, image the moment you expose. We'll help you choose the right system for your workflow.
See the Eighteeth Nanopix →
Common questions
Can the PSPix² be shared between surgeries?
Yes — the PSPix² supports multiple users and multiple workstations via Ethernet. It can be used as a personal chairside unit or shared between surgeries. The colour status light (blue/purple/yellow) shows availability at a glance.
Is it compatible with Carestream CS 7600 plates?
Yes. The PSPix² is compatible with CS 7600 and CS 7200 imaging plates in sizes 0–3. If you already have Carestream plate stock, you can use it with the PSPix² without needing to replace it.
What makes FIBER2PIXEL® different?
Standard PSP scanners use a direct laser-to-sensor path. FIBER2PIXEL® uses broad-spectrum optical microfibres to guide photon transmission — preserving signal and delivering greater tissue differentiation and contrast than conventional systems.
How does autoclavability work?
The PSPix² has removable parts that are compatible with thermal washer-disinfectors and autoclave sterilisation. Optional autoclavable components are available. This is unique to the PSPix² — no other PSP scanner offers this level of decontamination.
What software is included?
SOPRO Imaging software is included with each PSPix². It offers advanced X-ray image processing tools and is compatible with Windows and Mac. Open format output is compatible with all major practice management systems.
How does it differ from the CS 7600?
The CS 7600 is a centralised multi-surgery scanner with Scan & Go patient routing — ideal for sharing across a busy multi-surgery practice. The PSPix² is a personal chairside unit designed for single-surgery use, with autoclavable parts and FIBER2PIXEL® technology. Both offer excellent image quality; the right choice depends on your practice layout.
