DEXIS · Intraoral Scanner · Wireless

Freedom at
your fingertips.

DEXIS IS 3800W · Red Dot Award Winner 2022 · Design by Studio F.A. Porsche

The IS 3800W gives you wireless freedom without compromise. Lightweight, fast and ergonomic — powered by IS ScanFlow for seamless scanning, diagnosis and patient communication. No cables. No limits.

Request a Demo → Get a Quote

25s

Single arch
scan time

240g

Lightweight
with battery

1hr

Continuous
scan time

Available now

IS 3800W

Finance available
Best price guaranteed

What Makes It Different

Wireless freedom.
Uncompromised performance.

Designed in collaboration with Studio F.A. Porsche and winner of the Red Dot Award 2022, the IS 3800W combines elegant ergonomics with powerful scanning technology.

📡

True Wireless Freedom

Dedicated point-to-point 5GHz Wi-Fi ensures a stable, cable-free connection. Simply plug in the Wi-Fi dongle and start scanning. Move freely between chairs and operatories.

⚡

Super-Fast Scanning

Proven 25-second single arch scan time. Fast and smooth thanks to a large 16 × 14 mm field of view and a 21 mm depth of field that captures detail even in interproximal areas.

🏋️

Lightweight & Compact

Weighing just 240 g with battery, the IS 3800W sits comfortably in your hand for extended scanning sessions. Compact design by Studio F.A. Porsche — ergonomic from every angle.

✋

Gesture Motion Control

An embedded sensor lets you orient the 3D model on screen by simply rotating the scanner handpiece — no need to touch the mouse. Stay focused on your patient throughout the scan.

🔋

1 Hour Battery Life

Enjoy up to one hour of continuous scanning per charge. Smart charging station, backup power cable, and optional extra batteries ensure the scanner is always ready when you need it.

🔄

Interchangeable Tips

Three tip styles — normal, side, and posterior — to optimise scanning comfort in every area of the mouth. All tips autoclavable up to 110 cycles, reducing consumable costs.

🧠

IS ScanFlow Software

Powered by IS ScanFlow — Scan, Check, Export. AI matching, edentulous mode, hybrid scanning for restorative and implant workflows, and one-click export to your lab.

🔗

Open System

Fully open platform — export STL, PLY, OBJ, xOrder for DWOS, and Dentalproject for exocad. Works with any lab that accepts STL files. No lock-in, maximum flexibility.

📱

IS Voyager Mobile Setup

Combine with the IS Voyager trolley and IS All-in-One computer for a fully mobile chairside scanning setup — lightweight, manoeuvrable, and built for busy multi-operatory practices.

Technical Specifications

Built to
perform.

Every detail of the IS 3800W has been engineered for speed, accuracy and comfort.

Sensor technology	1/2.9 inch CMOS
Illumination	LED: Red, Blue, Green
Field of view	16 × 14 mm (13 × 7 mm posterior tip)
Depth of field	-2 to +16 mm (21 mm range)
Anti-fogging	Airflow — guaranteed non-fogging intraorally
Weight	240 g including battery
Dimensions	226 × 38 × 50 mm
Protocol	Dedicated 5GHz Wi-Fi point-to-point
Battery life	1 hour continuous scanning
Tip sterilisation	Autoclavable up to 110 cycles
File export	STL, PLY, OBJ, xOrder, Dentalproject
Software	IS ScanFlow

Wireless vs Wired

IS 3800W
vs IS 3800.

Both models share the same IS ScanFlow software and open platform. Choose based on your workflow preference.

Connectivity	IS 3800W: Wireless 5GHz · IS 3800: USB-C wired
Weight	IS 3800W: 240 g · IS 3800: 190 g
Power	IS 3800W: Rechargeable battery · IS 3800: PC-powered
Scan time	Both: ~25 seconds single arch
Field of view	Both: 16 × 14 mm
Gesture control	Both: Yes
Interchangeable tips	Both: 3 styles, autoclavable to 110 cycles
IS ScanFlow	Both: Full software included
Best for	IS 3800W: Multi-chair, mobile · IS 3800: Fixed operatory

DEXIS Scanner Range

Which DEXIS scanner
is right for you?

All three scanners run IS ScanFlow and share an open platform. The difference is in speed, sensor technology, and workflow features.

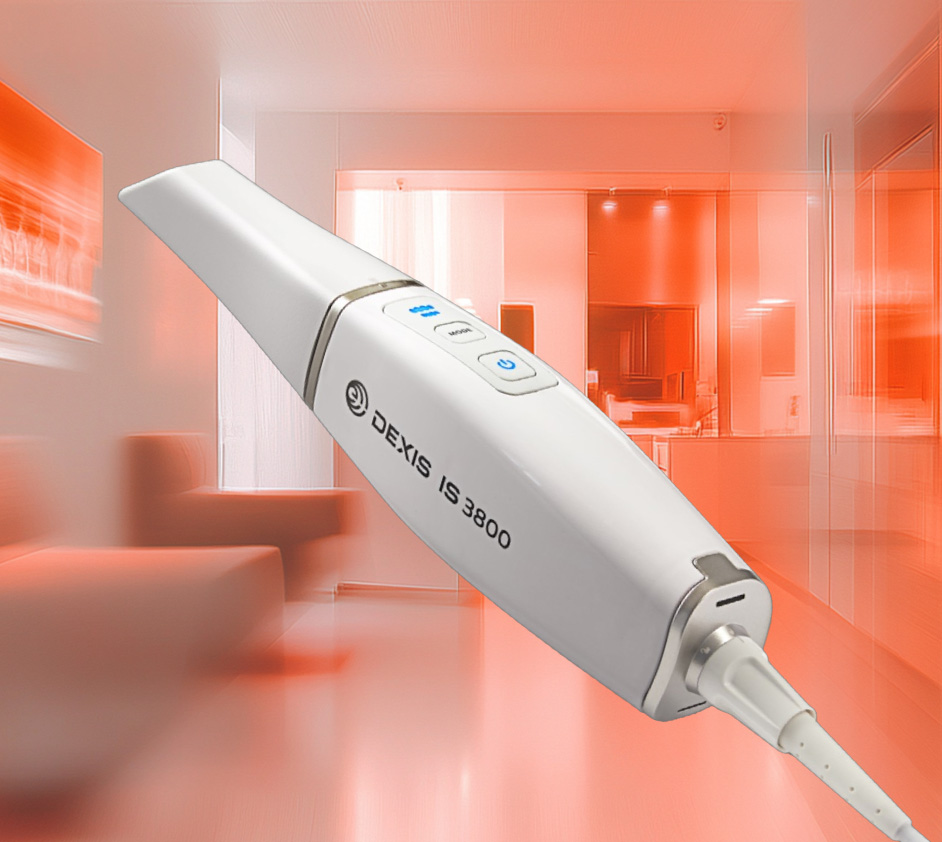

IS 3800

Premium wired scanner. Lightest in the range.

190 g — lightest DEXIS scanner
USB-C wired — powered by PC
16 × 14 mm FOV
Gesture motion control
3 interchangeable tips
IS ScanFlow software
Open platform STL export

Enquire →

IS 3800W ★ This Page

Wireless freedom. Red Dot Award 2022.

240 g with battery
Wireless 5GHz — no cables
1 hour battery life
16 × 14 mm FOV, 21 mm DoF
Gesture motion control
IS Voyager mobile trolley compatible
IS ScanFlow software

Get a Quote →

Imprevo — New

DEXIS flagship. Dual sensor. 40 FPS.

297 g with battery
Dual sensor — vivid lifelike colour
40 FPS — 2× faster than 3800W
25 mm depth of field
GeniusControl gesture interface
Inductive wireless charging
IS ScanFlow 2.0

View Imprevo →
