Smart Plate · Size 0
CS 7600 Smart Plates V2 Size 0
22 × 35 mm · Paediatric periapical · Pack of 4
£199.00 + VAT
Add to basketCarestream Dental · Phosphor plate scanner

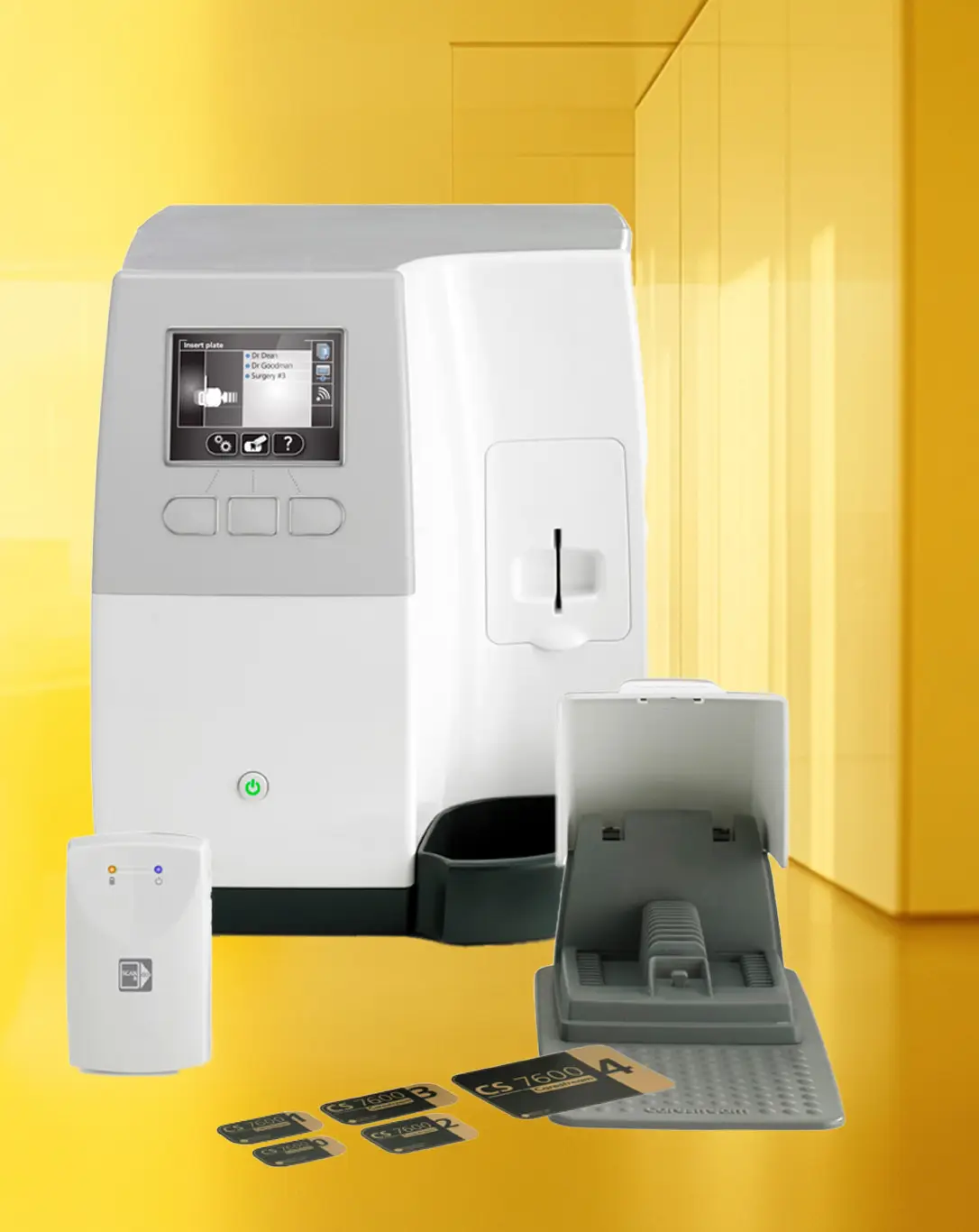

Carestream CS 7600
phosphor plate scanner
The Carestream CS 7600 – also written CS7600 – is the phosphor plate scanner built to be shared. One unit serves up to 10 workstations. A chip in every Smart Plate sends each image to the right patient file, so plates can be scanned in any order with no mix-ups. 18 lp/mm true resolution. Plate sizes 0 to 4.
£4,999.99 + VAT
Your CS 7600 includes
Remote installation
You plug it in. We log in and set up every workstation.
Team training
Delivered by a registered dental nurse.
- Smart Plate technology
- Up to 10 workstations
- 18 lp/mm true resolution
- Plate sizes 0–4
- Scan & Go workflow
- CS Imaging software
Remote installation included · Best price guarantee · RDN-delivered training · Finance available
The workflow
How the Carestream CS 7600 works
Four steps. The chip in the plate does the admin, so nobody sorts or labels images.
-
01
Tag
Touch the Smart Plate to the Scan & Go device in your surgery. It now carries the patient and workstation.
-
02
Expose
Take the X-ray as normal. The plate is thin, flexible and cable-free, so it handles like film.
-
03
Scan
Drop the plate into the CS 7600 and walk away. Plates can go in any order, from any surgery.
-
04
View
The image lands in the right patient file on the right screen. The plate is erased, ready to reuse.
Why practices choose it
Why choose the CS 7600 phosphor plate scanner
Six things that matter when several surgeries share one scanner.
Smart Plate routing
Every plate has an electronic chip that links it to a patient and a workstation. Images route themselves. No sorting, no labelling, no retakes from mislabelled films.
Up to 10 workstations
One scanner serves the whole practice over your network. Put it in a corridor or decon room and let every clinician scan into their own patient file.
18 lp/mm true resolution
Measured resolution, not a theoretical figure. Fine anatomy, root canals and early caries show clearly on every plate size.
All five plate sizes
Sizes 0, 1, 2, 3 and 4 – paediatric periapicals through to occlusal views – on one scanner, with no adapters to swap.
Scan & Go workflow
Drop a plate in and take your next patient. You don’t wait at the scanner or tell it who the image belongs to.
Film-familiar handling
Thin, flexible, cable-free plates position like film and are reusable for hundreds of exposures. Teams moving from film need very little retraining.
Carestream exclusive
Smart Plates: a chip in every plate
On most phosphor plate systems, someone has to tell the scanner whose image is coming next. In a busy practice that is where mix-ups happen: plates queue up, get scanned out of order and land in the wrong file.
Carestream Smart Plates carry an electronic chip. You tag the plate at the chairside before the exposure. When it reaches the CS 7600, the scanner reads the chip and sends the image to the right patient on the right workstation, whatever order the plates arrive in.
- No image mix-ups between surgeries
- No waiting for the scanner to be free
- Plates erase automatically after scanning
- Durable, scratch-resistant and reusable hundreds of times
In practice
One scanner for the practice, not one per surgery
A sensor or personal scanner in every room adds up fast. The CS 7600 takes the opposite approach: one unit in a shared space, feeding every surgery over the network.
That suits practices with three or more surgeries and a steady flow of bitewings and periapicals. Most installations we set up run three to six workstations.
- One purchase covers the whole practice
- Each surgery scans into its own patient file
- CS Imaging software with CS Adapt image filters
- Works with most UK practice management systems
Plates, sheaths & accessories
Carestream CS 7600 plates and sheaths in stock now
Genuine Carestream Smart Plates V2, hygienic sheaths and cleaning plates, held in Yorkshire. Order before 2pm and we ship same day.
Smart Plate · Size 1
CS 7600 Smart Plates V2 Size 1
24 × 40 mm · Anterior & periapical · Pack of 4
£199.00 + VAT
Add to basket
Smart Plate · Size 2
CS 7600 Smart Plates V2 Size 2
31 × 41 mm · Adult bitewing & periapical · Pack of 4
£199.00 + VAT
Out of stock – call us
Smart Plate · Size 4
CS 7600 Smart Plates V2 Size 4
57 × 76 mm · Occlusal · Pack of 2
£249.00 + VAT
Add to basket
Sheaths · Size 1
CS 7600 Hygienic Sheaths Size 1
24 × 40 mm · 250 per pack · With foam strip
£37.45 + VAT
Add to basket
Sheaths · Size 2
CS 7600 Hygienic Sheaths Size 2
31 × 41 mm · 250 per pack · With foam strip
£37.45 + VAT
Add to basket
Maintenance
CS 7600 Roller Cleaning Plate
Cleans the scanner rollers in one pass · Single plate
£24.99 + VAT
Add to basket
Scan & Go
CS 7600 Scan & Go Device
Tags each Smart Plate to the patient and workstation at the chairside
£119.99 + VAT
Out of stock – call usNeed size 3 plates, or not sure which size fits? Call 01943 601222 or message us on WhatsApp. More on sheath sizes and the foam strip on our CS 7600 sheaths page.
The detail
Carestream CS 7600 technical specifications
- Model
- Carestream CS 7600
- Type
- Intraoral phosphor plate (PSP) scanner
- True resolution
- 18 lp/mm
- Plate technology
- Smart Plates V2, chip-identified
- Plate sizes
- 0, 1, 2, 3, 4
- Workstations
- Up to 10
- Workflow
- Scan & Go automatic routing
- Plate erasure
- Automatic after each scan
- Connection
- Ethernet network
- Software
- CS Imaging, included
- Installation
- Remote, included
- Best suited to
- Multi-surgery practices
Buying from us
Why buy your CS 7600 from 360 Visualise
Best price guarantee
We’ll match any genuine like-for-like quote. No quibble.
Remote installation included
We ship it to you, then log in to set up the software, the network and Smart Plate routing for each workstation.
RDN-delivered training
Full team training from a registered dental nurse, included as standard.
Dedicated WhatsApp support
Real people, fast responses. Not a ticket queue.
Flexible finance
Bramar, Performance Finance and Aspired Finance. Subject to status.
Yorkshire-based team
You’ll always speak to the same person. No call centres.
Common questions
Carestream CS 7600 questions answered
How many surgeries can share one CS 7600?
The CS 7600 supports up to 10 workstations. Most multi-surgery installations use three to six, across the surgeries plus reception or an office.
Which plate sizes does the CS 7600 take?
All five Carestream Smart Plate sizes: 0 (paediatric), 1 (anterior and periapical), 2 (adult bitewing), 3 (long bitewing) and 4 (occlusal). We stock sizes 0, 1, 2 and 4 to buy online. Call us for size 3.
How much does the Carestream CS 7600 cost in the UK?
£4,999.99 + VAT from 360 Visualise, including remote installation and team training. Finance is available through Bramar, Performance Finance and Aspired Finance, subject to status.
Do you sell CS 7600 plates, sheaths and cleaning plates?
Yes. Smart Plates V2, hygienic sheaths in sizes 1 and 2 and the roller cleaning plate are all on this page to buy online, and ship from our Yorkshire stock.
What is the difference between the CS 7600 and the CS 7200 Neo?
Both use Carestream Smart Plates. The CS 7200 Neo is a compact chairside scanner for a single surgery and takes plate sizes 0 to 2. The CS 7600 takes all five sizes, serves up to 10 workstations and adds the Scan & Go workflow.
How does remote installation work?
We ship the CS 7600 to your practice. You unbox it and connect power and a network cable. Our team then logs in remotely to install CS Imaging and set up image routing to each workstation.
CS 7600 or Acteon PSPIX2?
The CS 7600 is a central scanner shared across a busy practice. The Acteon PSPIX2 is a personal chairside scanner for one surgery. Both give excellent images, so the choice comes down to your practice layout and how many rooms need to scan.
Compare
Other intraoral X-ray options
A shared plate scanner isn’t right for every practice. Here are three alternatives.
Acteon PSPIX2
Personal chairside plate scanner at £3,999 + VAT. 20 lp/mm, autoclavable parts, first image in under three seconds.
View product →
Carestream CS 7200 Neo
Compact chairside Smart Plate scanner for a single surgery. Plate sizes 0–2.
View product →
Eighteeth Nanopix
Two direct sensors from just over £2,000 + VAT. Instant images with no scanning step.
View product →Ready to talk about the CS 7600?
Straight advice, no sales pressure. We’ve been supplying and supporting dental imaging across the UK since 2009.
Remote installation and team training included · Finance available
